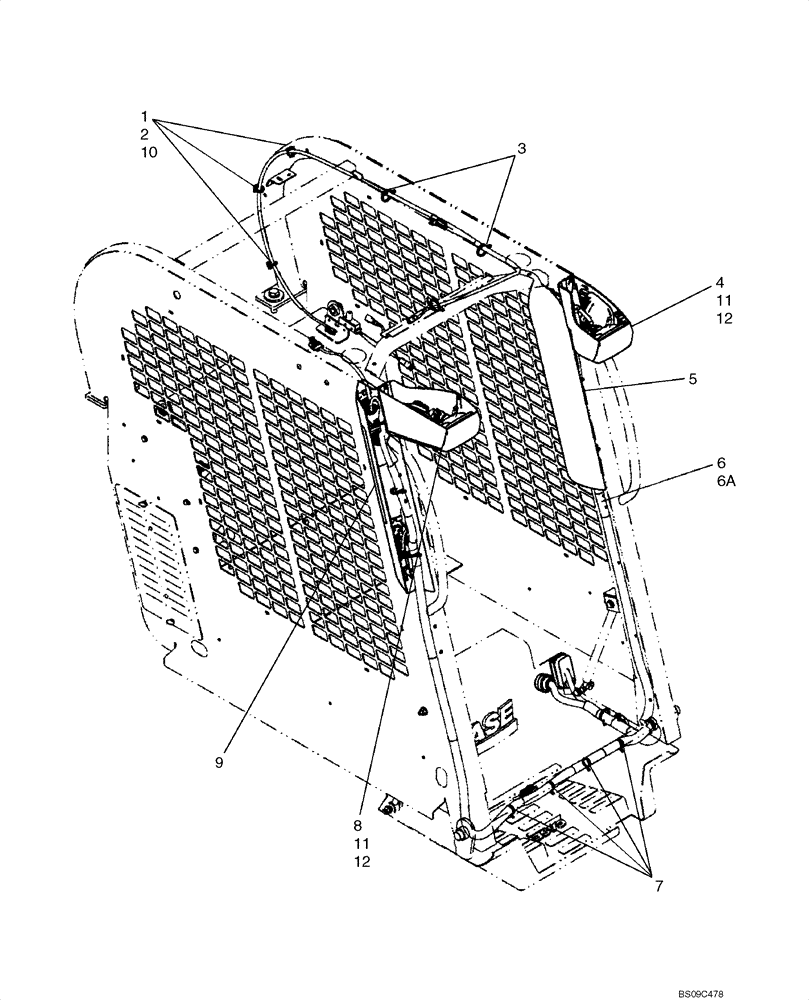

Запчасти Case 430 (04-07) - ELECTRIC - CAB (04) - ELECTRICAL SYSTEMS

1

87642914

BASE

Strap Mount

3шт.

2

87642915

CABLE TIE,198mm L

CABLE STRAP

3шт.

3

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap With Mount

10шт.

4

87650097

LIGHT

Work Light, LH; See Fig. 04-17

1шт.

4a

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

Mounting Hardware For Worklights Ref 4, 8, Not Illustrated

6шт.

5

87627050

CONSOLE

Console, LH; See Fig. 04-09

1шт.

6

87668728

HARNESS

Harness, Cab; Incl 6A

1шт.

6a

87618013

DIODE

6A Diode

1шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

8

87650098

LIGHT

Work Light, RH; See Fig. 04-18

1шт.

9

87665327

CONSOLE

Console, RH; See Fig. 04-08

1шт.
