Запчасти Case 430 (04-06A) - CHASSIS - ELECTRICAL (04) - ELECTRICAL SYSTEMS

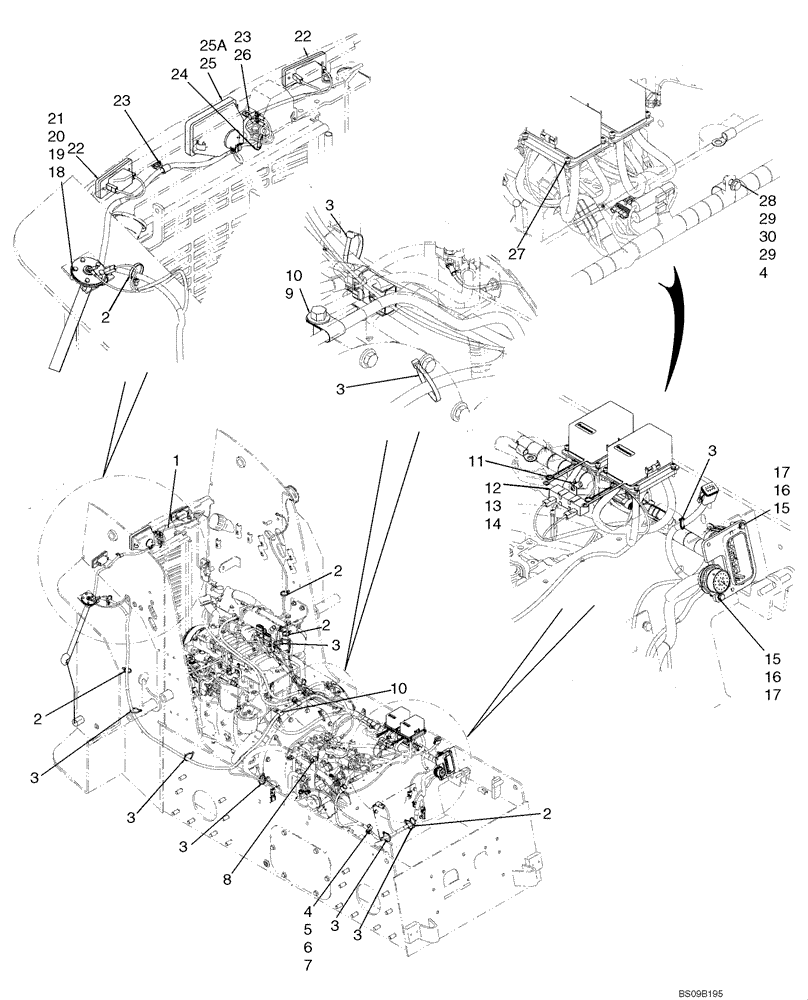

Схема запчастей Case 430 - (04-06A) - CHASSIS - ELECTRICAL (04) - ELECTRICAL SYSTEMS
3
27
3
3
18
10
23
4
3
25a
2
9
28
2
26
21
14
6
8
5
29
1
3
17
25
15
4
3
11
17
22
20
12
15
16
3
7
2
3
3
22
19
23
2
10
16
2
24
29
30
13

Артикул

Название

Примечание

Количество

1

87661493

HARNESS

Chassis; See Fig 04-06

1шт.

1

87715729

HARNESS

Chassis CP See Fig 04-06B

1шт.

1

87747921

HARNESS

Chassis CP See Fig 04-06C

1шт.

2

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assy; If Used

5шт.

3

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP Black; If Used

8шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Black

9шт.

4

43362

NUT,M8 x 1.25, Cl 10

If Used

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

1шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

1шт.

7

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

Clip, 12.7mm Insul 3/8 Bolt

1шт.

8

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Oil Trans

1шт.

9

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

If Used

1шт.

10

86639004

CLAMP,14.3mm, Coat, 13.5mm Bolt Hole, P Type

If Used

2шт.

11

87825

NUT,#10-32

1шт.

12

D122634

ISOLATOR,12.7mm OD x 14.1mm L

Isolator Mount

1шт.

13

87016450

SCREW,Pan, #10 - 32 x 5/8"

1шт.

14

86705351

RESISTOR

1шт.

15

87030561

NUT,M6 x 1, Cl 8

2шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

18

376843A4

SENDER UNIT

SENDER Fuel Level

1шт.

19

528359R4

GASKET,3.05mm Thk

Sender Unit

1шт.

20

196985A1

ROD,THREADED

THREADED ROD

5шт.

21

87308282

SCREW,HWH, #10 - 32 x 3/4"

5шт.

22

233163A2

LAMP, TAIL

LIGHT, TAIL Rear Postion Lamp; Incl Bulb 259499A1 And Screws 260-13414

2шт.

23

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

1-2шт.

24

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

25

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Halogen Low Profile Lamp

1шт.

25a

259702A1

BULB

50W 12.8V Halogen

1шт.

26

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

If Used

1шт.

27

87020181

SCREW,Phillips Drive, Pan HD, #10 - 32 x 7/8"

10-32 x .875; If Used

8шт.

27

87534744

FASTENER,BTN HD, #10 - 32 x 5/8"

Screw Hex 10 x .625

8шт.

28

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

If Used

1шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

If Used

2шт.

30

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

Выбрано товаров: 35
