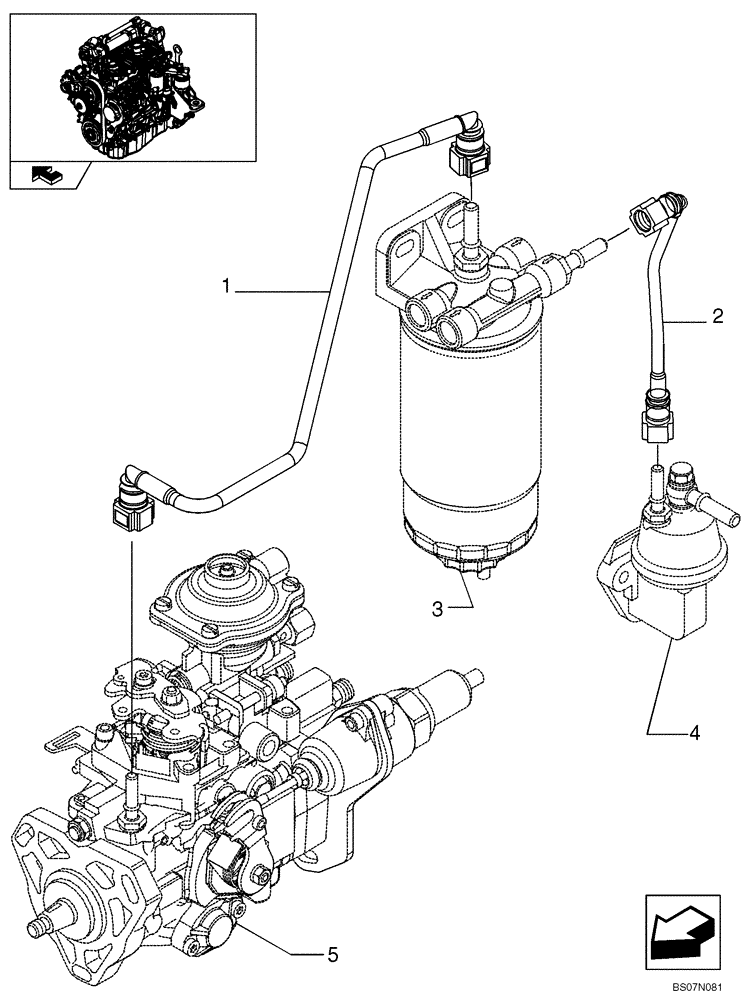

Запчасти Case 430 (03-10) - PIPING - FUEL (87530652) (03) - FUEL SYSTEM

1

504207948

INJECTION PIPE

Pipe Injection

1шт.

2

504184992

INJECTION PIPE

Pipe Injection

1шт.

3

REF

INSTRUCTION

See Figure 03-08, Fuel Filter

1шт.

4

REF

INSTRUCTION

See Figure 03-09, Fuel Pump

1шт.

5

REF

INSTRUCTION

See Figure 03-03, Injection Pump

1шт.
