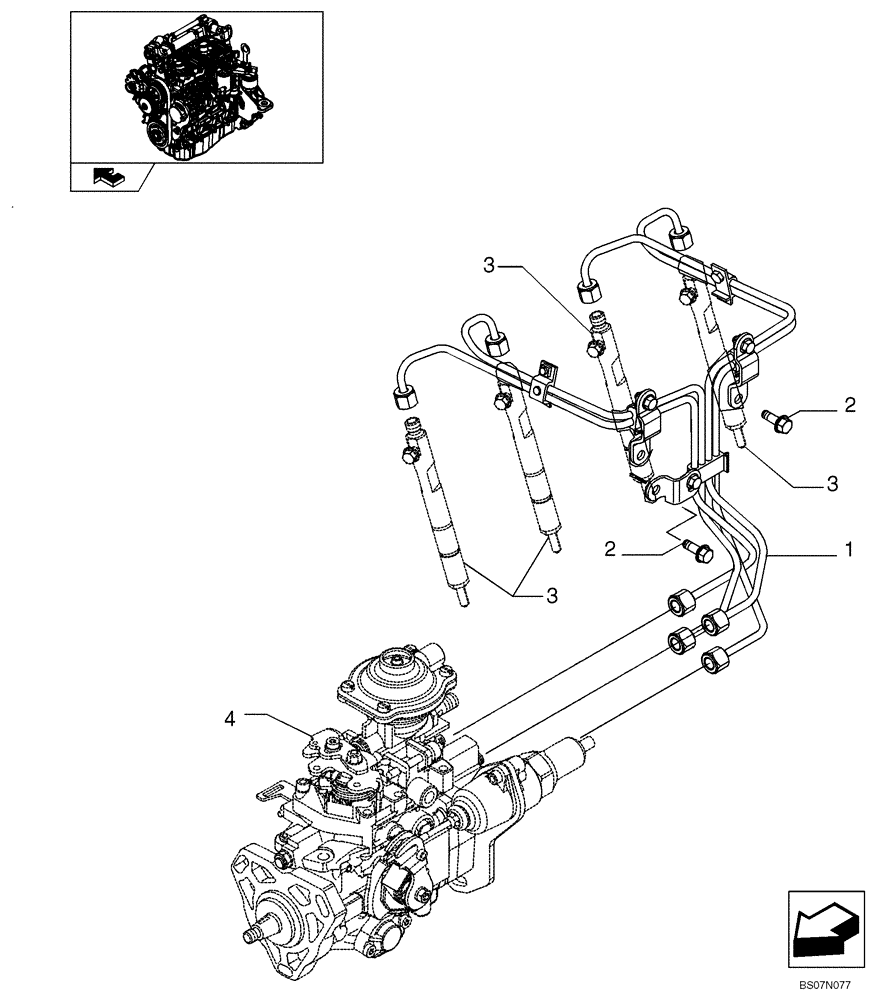

Запчасти Case 430 (03-06) - INJECTION EQUIPMENT - PIPING (87530652) (03) - FUEL SYSTEM

1

504216298

INJECTION PIPE

Injection Pipe

1шт.

2

2852323

SCREW,M8 x 1.25 x 14mm

M8X14 mm

3шт.

3

REF

INSTRUCTION

See Figure 03-04, Injection Equipment - Injector

1шт.

4

REF

INSTRUCTION

See Figure 03-03, Injection Pump

1шт.
