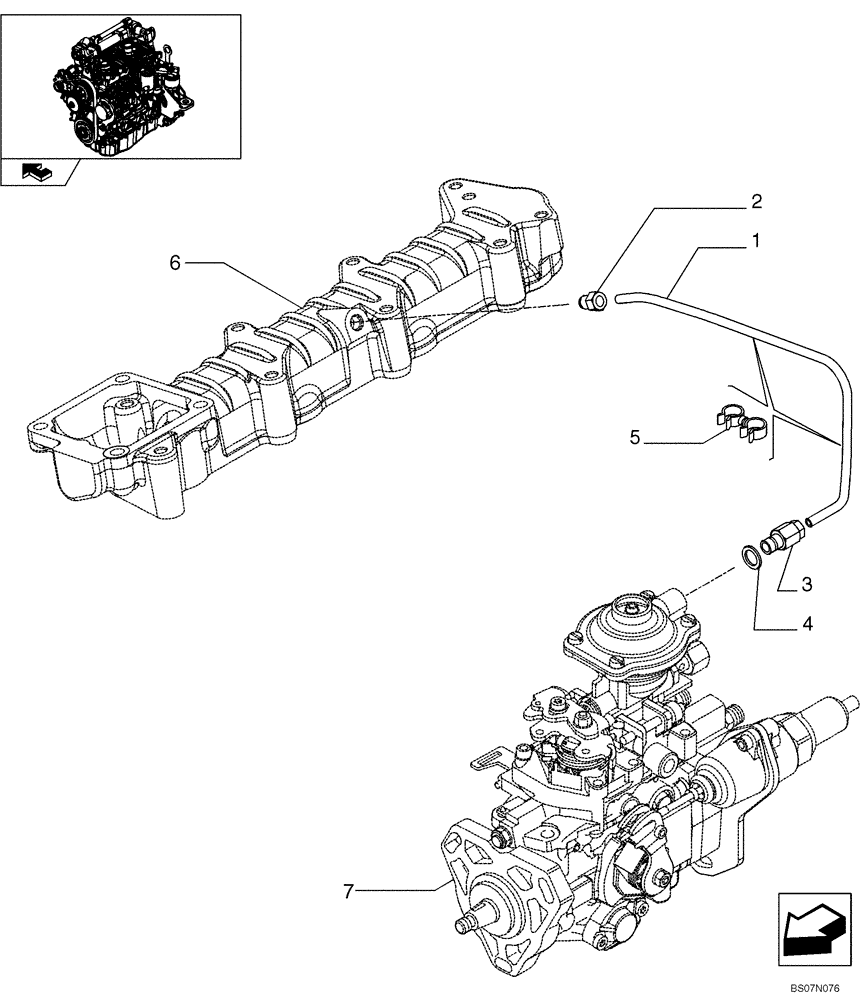

Запчасти Case 430 (03-05) - INJECTION EQUIPMENT - PIPING (87530652) (03) - FUEL SYSTEM

1

504253448

PIPE

Pipe

1шт.

2

4896770

TUBE NUT,M10 x 1

1шт.

3

4893518

TUBE,M8 x 1 x 29.5 L

1шт.

4

2852057

SEALING WASHER,M8 x 12 x 1 Thk

D. 8X12 mm

1шт.

5

2852521

CLIP

2шт.

6

REF

INSTRUCTION

See Figure 02-19, Intake Manifold

1шт.

7

REF

INSTRUCTION

See Figure 03-03, Injection Pump

1шт.
