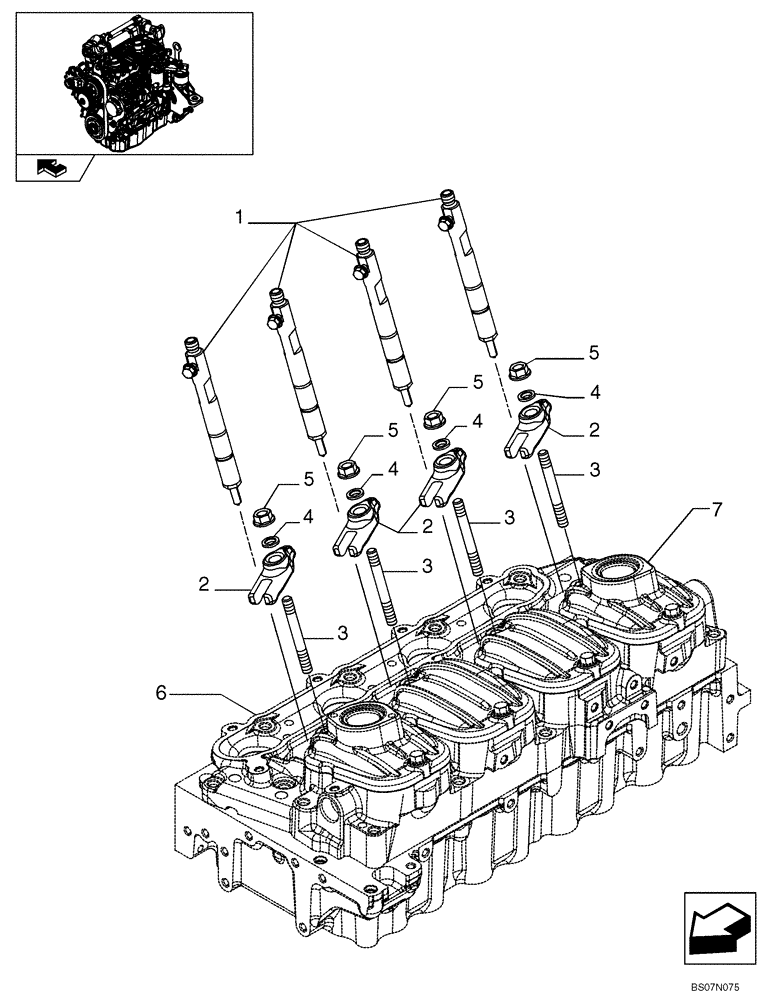

Запчасти Case 430 (03-04) - INJECTION EQUIPMENT - INJECTOR (87530652) (03) - FUEL SYSTEM

1

504275234

FUEL SYSTEM INJECTOR

Incl Sealing Washer J937142

4шт.

504275234R

REMAN-INJECT NOZZLE

430 Series 3 ASN N7M479683

4шт.

504275234C

CORE-NOZZLE, INJECT

Return Number

1шт.

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1.5 mm Washer

1шт.

2

504174745

BRACKET

Bracket

4шт.

3

504315404

STUD,M8 x 16 x 60mm

M8X16X60

4шт.

4

500353601

WASHER

Washer

4шт.

5

17044735

NUT,Hex, M8

M8

4шт.

6

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.

7

REF

INSTRUCTION

See Figure 02-17, Cylinder Head Covers

1шт.
