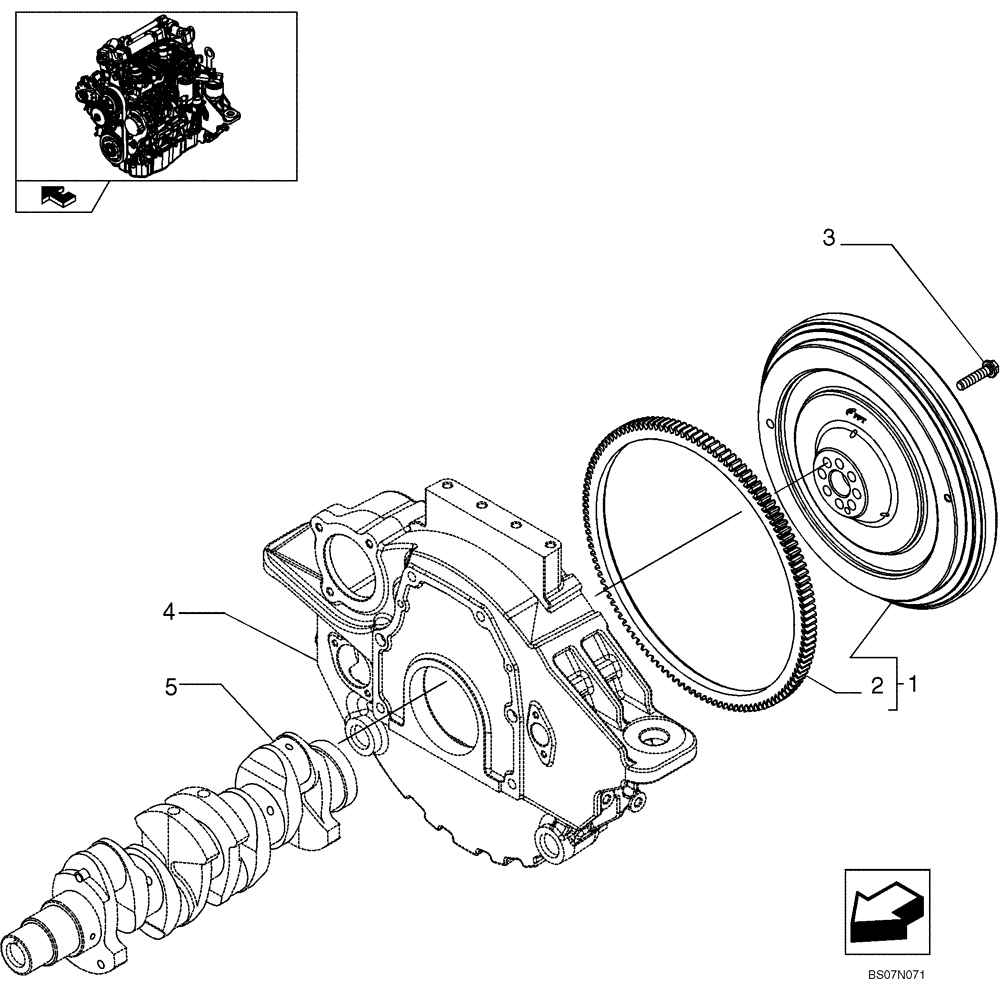

Запчасти Case 430 (02-25) - ENGINE - FLYWHEEL (87530652) (02) - ENGINE

1

504178292

ENGINE FLYWHEEL

Flywheel, Engine Assy

1шт.

2

500388140

RING GEAR

1шт.

3

504027865

SCREW,Hex, M12 x 1.25

M12X1,25 mm

8шт.

4

REF

INSTRUCTION

See Figure 02-13, Engine Block Front Cover

1шт.

5

REF

INSTRUCTION

See Figure 02-22, Crankshaft

1шт.
