Запчасти Case 430 (10-01) - KIT, CP CAB SEALING (09) - CHASSIS

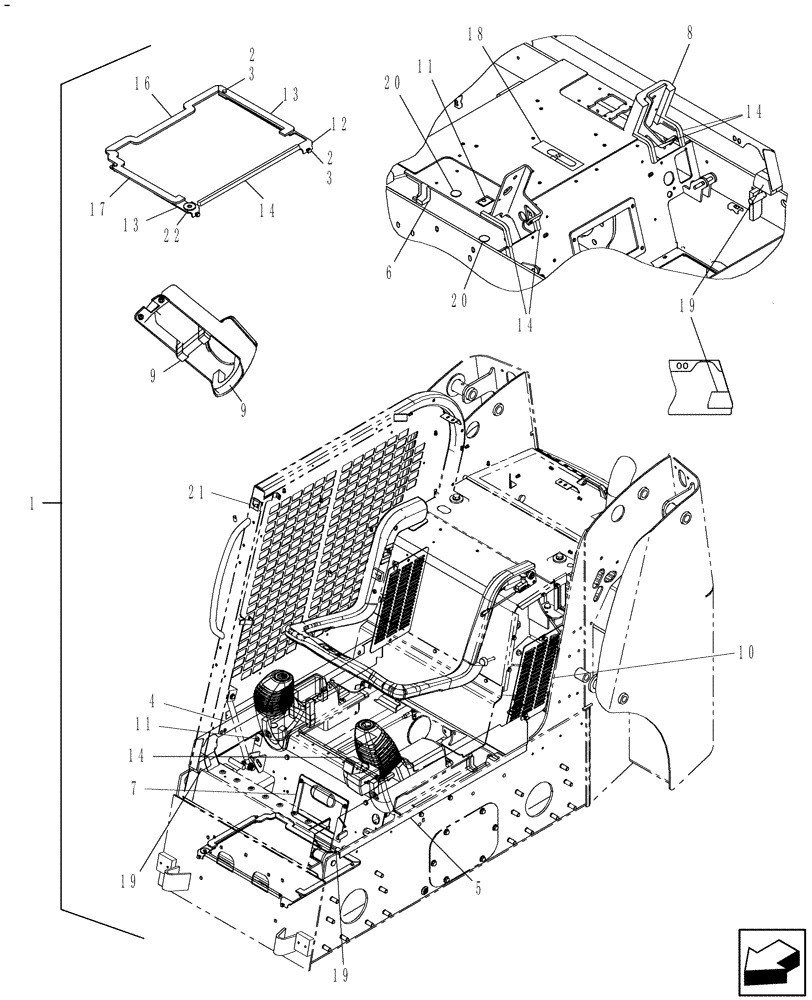

Схема запчастей Case 430 - (10-01) - KIT, CP CAB SEALING (09) - CHASSIS
14
19
17
12
19
11
5
13
6
7
1
19
18
9
16
14
11
20
4
3
14
22
9
3
21
20
13
2
14
8
10
2

Артикул

Название

Примечание

Количество

1

84197605

SEAL KIT

CP Cab Sealing, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

4

84129087

COVER

RH

1шт.

5

84129088

COVER

LH

1шт.

6

84179862

SEAL

Cab, L-Shaped

2шт.

7

84182139

SEAL PROTECTION

Cover, Heel-Plate

1шт.

8

84192592

FOAM INSULATION

Console Rear

1шт.

91

84290431

FOAM INSULATION

1" x 1"

4шт.

Cut to Length Required

1шт.

10

84192596

ACCESS COVER

Vented

2шт.

11

84192597

SEAL

2шт.

12

84193816

SUPPORT

Floor Plate, LH

1шт.

13

84193818

SUPPORT

Floor Plate, RH

1шт.

14

84290455

FOAM INSULATION

1/2" x 1/2"

6шт.

Cut to Length Required

1шт.

15

84193945

GASKET

Floor Plate, LH Section

1шт.

16

84193946

GASKET

Floor Plate, Center Section

1шт.

17

84193948

GASKET

Floor Plate, RH Section

1шт.

18

84201814

DECAL

Seat Harness

2шт.

19

84223247

FOAM INSULATION

Pivot

4шт.

20

87499075

DECAL

Blank

3шт.

21

87729517

SEALING STRIP

2шт.

22

9672338

GROMMET

1шт.

Выбрано товаров: 25
