Запчасти Case 430 (09-59A) - SOUNDPROOFING - SEAL; IF USED (09) - CHASSIS

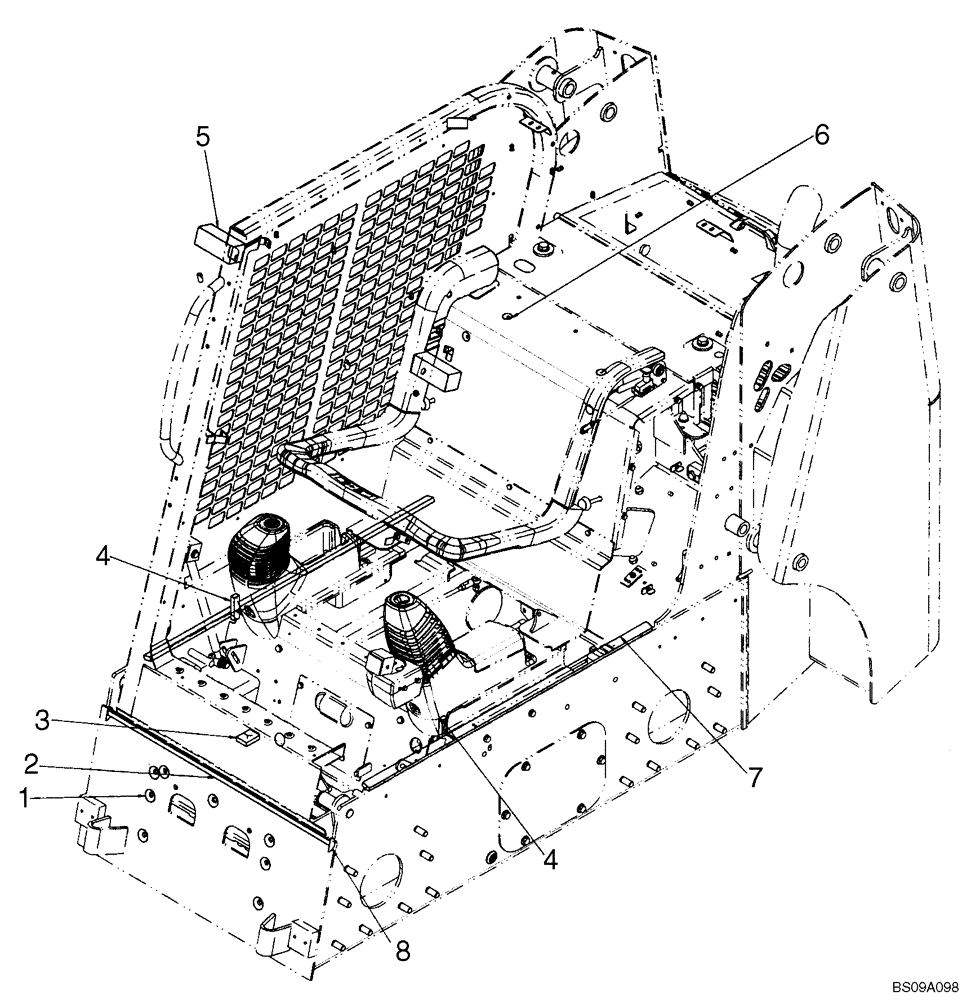

Схема запчастей Case 430 - (09-59A) - SOUNDPROOFING - SEAL; IF USED (09) - CHASSIS
8
6
2
4
5
1
4
7
3

Артикул

Название

Примечание

Количество

1

299274A2

COVER,35mm OD

35mm (1.38in), Lexan

9шт.

2

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

3

87729517

SEALING STRIP

Foam, Aux And Throttle

1шт.

4

291308

SEALING STRIP,0.75" W x 0.5" Thick

0.5ft

1шт.

5

87729516

FOAM INSULATION

Foam, Crushable

2шт.

6

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4mm (1in)

4шт.

7

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Side Screen

2шт.

8

394748A1

INSULATION

Relief Cut

2шт.

Выбрано товаров: 8
