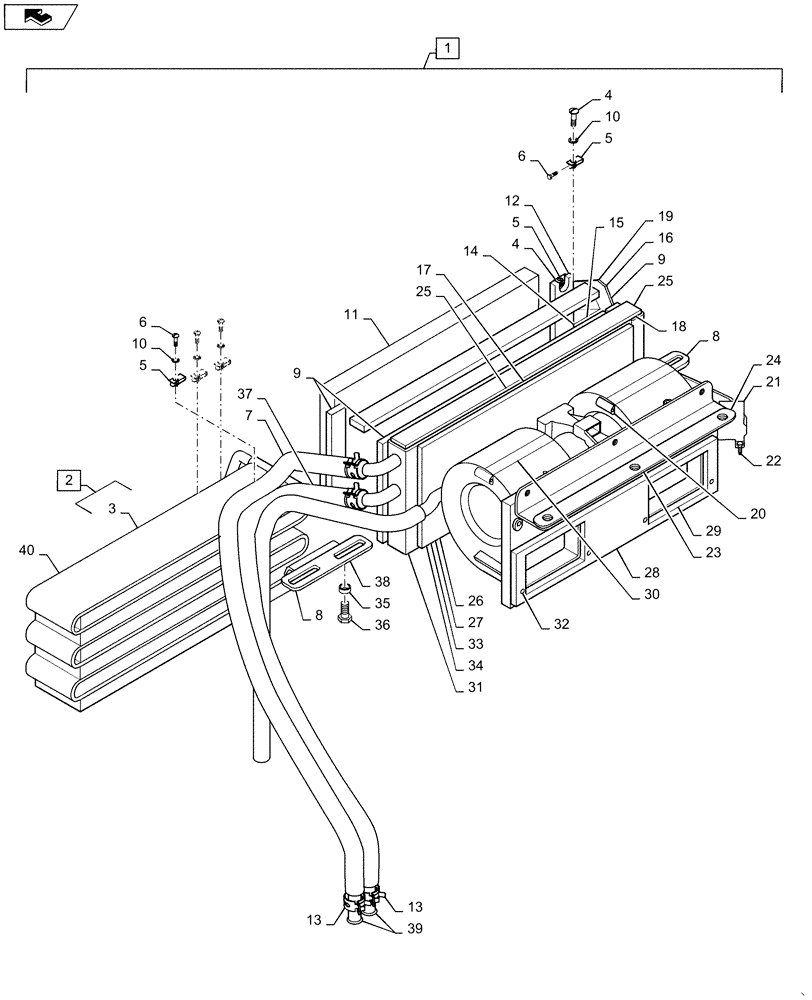

Запчасти Case 430 (09-55A) - HEATER AND AIR CONDITIONING ASSEMBLY (09) - CHASSIS

1

87653393

AIR CONDITIONER,Assembly

Heat And Air Conditioning Unit; Incl 2 - 41 And Figure 09-55

1шт.

2

87656113

EVAPORATOR

Incl 3

1шт.

3

87035782

VALVE

Expansion

1шт.

4

87656127

SCREW

Pan Head, #12 X 3/4IN

4шт.

5

87656126

CLIP

Recepticle "U" Type

5шт.

6

87656125

SCREW,1.30mm

Wing Head

3шт.

7

87656099

HOSE,15.88 mm ID x 635.00 mm, SAE 20R3

Formed, Short

1шт.

8

87656095

BRACKET

2шт.

9

87756827

SEALING STRIP

Evaporator, Foam Tape, 25.4mm (1 in.) X 151mm (6 in.) Length

3шт.

10

87753901

RETAINER

3шт.

11

87656118

CAB FILTER,362mm L x 160mm W x 24mm Thk, Charcoal

Charcoal, 160mm (6 5/16 in.) X 362mm (14 1/4 in.)

1шт.

12

87756826

FOAM INSULATION

Evaporator Tubes

1шт.

13

87584302

CLAMP,16mm - 19mm, Spring

2шт.

14

87656112

BRACKET

1шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Incl In P/N 87653393

2шт.

16

87656111

GASKET

Expansion Valve

1шт.

17

87756824

SEAL

Bottom, Filter

1шт.

18

NSS

NOT SOLD SEPARAT

HVAC Clip, Incl In P/N 87653393

1шт.

19

87756820

SEALING STRIP,19.05mm W x 3710.48mm L x 19.05mm Thk

Core

1шт.

20

NSS

NOT SOLD SEPARAT

HVAC Clip, Incl In P/N 87653393

1шт.

21

86625480

THERMOSTATIC SWITCH

Cold Control

1шт.

22

84221468

SCREW

Screw, #8 x 3/4

2шт.

23

87656097

GASKET,3.18mm Thk

Neoprene, Front

1шт.

24

87656106

BRACKET

Front

1шт.

25

87656119

FOAM INSULATION

Filter, 152mm (6 in.) X 375mm (14 3/4 in.)

2шт.

26

87656110

FOAM

Drain Pan

1шт.

27

NSS

NOT SOLD SEPARAT

Blower Bolt, Incl In P/N 87653393

2шт.

28

87656107

PLATE

Blower Mount

1шт.

29

87656108

GASKET

Blower Outlet

1шт.

30

86592107

ELECTRIC BLOWER

Assy

1шт.

86592107R

REMAN-BLOWER

430 SERIES 3 ASN N7M479683 (1/08-)

1шт.

86592107C

CORE-BLOWER

Return Number

1шт.

31

87656103

CORE

Heater

1шт.

32

NSS

NOT SOLD SEPARAT

Panel Screw, Incl In P/N 87653393

8шт.

33

87656120

WIRE HARNESS

HVAC, Not Shown, Incl In P/N 87653393

1шт.

34

87753900

GASKET

Not Shown, Incl In P/N 87653393

2шт.

35

87753898

SPACER

Standoff, Plastic

2шт.

36

NSS

NOT SOLD SEPARAT

Screw, M6 x 20, Incl In P/N 87653393

2шт.

37

87656098

HOSE,15.88 mm ID x 635.00 mm, SAE 20R3

Formed, Long

1шт.

38

87656096

GASKET,3.18mm Thk

Neoprene, Bottom

2шт.

39

87035457

TUBE,0.625" DIA x 1.585" L

Beaded 5/8

2шт.

40

87756825

SEALING STRIP

Fresh Air

2шт.
