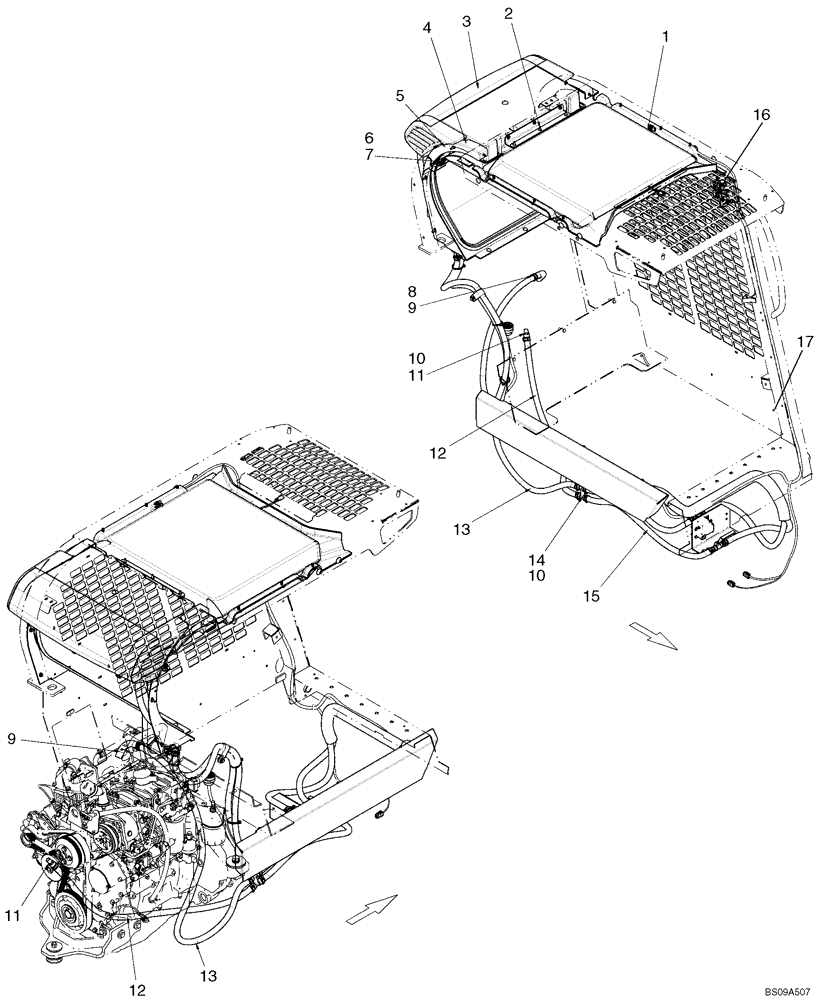

Запчасти Case 430 (09-52) - HEATER SYSTEM (09) - CHASSIS

87638259

SERVICE KIT

Kit, Deluxe Heater; Incl 1 - 17

1шт.

1

REF

INSTRUCTION

Heater System; See Fig 09-53

1шт.

2

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

3

84129072

Heater Assembly; Incl 87653394 And 84146888

1шт.

3

87653394

HEATER

Heater Assembly; See Fig 09-54

1шт.

4

87450833

TAPE

If Used

2шт.

5

291308

SEALING STRIP,0.75" W x 0.5" Thick

580mm (22 13/16 in.); If Used

1шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

7

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

8

87617165

ADAPTER

1шт.

9

87617163

HEATER HOSE,15.00 mm ID, 18.00 mm ID x 73.00 mm, SAE 20R4

Formed Heater Supply

1шт.

10

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

5-6шт.

11

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

If Used

1шт.

12

87717213

HEATER HOSE,15.75" mm ID, 1035.00 mm, SAE 20R3

1шт.

13

87717216

HEATER HOSE,15.75" mm ID, 1565.00 mm, SAE 20R3

1шт.

14

87610315

TUBE,15.9 mm OD x 79.4, 56.4 mm L

1шт.

15

87717212

HEATER HOSE,15.75" mm ID, 760.00 mm, SAE 20R3

2шт.

16

87555250

PLUG

A/C Switch Plug

1шт.

17

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4mm Dia, Lexan; If Used

3шт.
