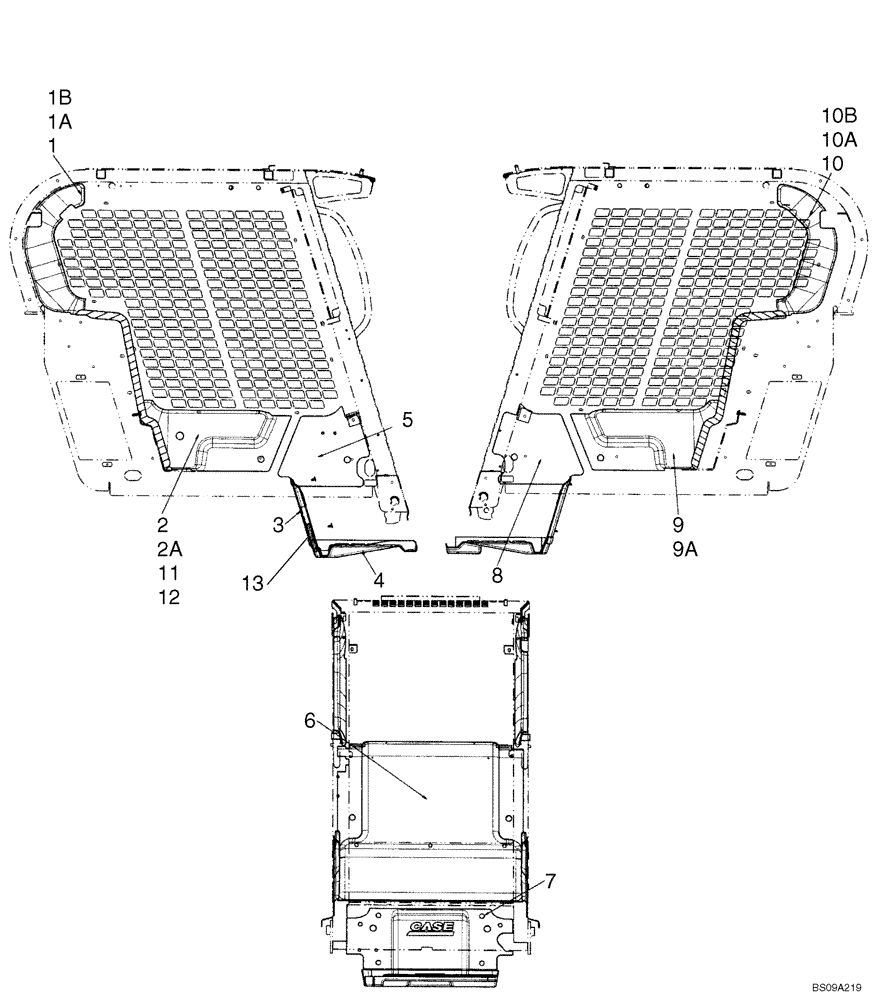

Запчасти Case 430 (09-47) - INTERIOR TRIM (09) - CHASSIS

1

87685891

LINER

Panel, Upper Right Rear; Incl 1A, 1B

1шт.

87638514

SERVICE KIT

Kit, Interior Trim; Incl 1 - 10B

1шт.

1a

87685911

FOAM

Retainer, Foam Block

1шт.

1b

87685909

FOAM

Retainer, Foam Block

1шт.

2

87730070

LINER

Panel, Lower Right Rear; If Used

1шт.

2

87743052

TRIM

Interior RH Rear Lower

1шт.

2a

87685909

FOAM

Retainer, Foam Block

1шт.

3

87730822

FLOOR MAT

Mat, Heel Plate; If Used

1шт.

3

84129065

FLOOR MAT

Mat, Heel Plate

1шт.

4

87712700

FLOOR MAT

Floor Mat; If Used

1шт.

4

84129064

FLOOR MAT

Floor Mat

1шт.

5

87727752

LINER

Interior Trim, Bottom RH

1шт.

6

87672098

LINER

Trim, Interior Heat Shield; If Used

1шт.

6

84138788

LINER

Trim, Interior Heat Shield

1шт.

7

87712706

FASTENER,16mm L, Nylon

Fastener, Push In

4шт.

8

87727748

LINER

Interior Trim, Bottom LH

1шт.

9

87730069

LINER

Panel, Lower Left Rear; If Used

1шт.

9

87743051

TRIM

Interior LH Rear Lower

1шт.

9a

87685909

FOAM

Retainer, Foam Block

1шт.

10

87685888

LINER

Panel, Upper Left Rear

1шт.

10a

87685911

FOAM

Retainer, Foam Block

1шт.

10b

87685909

FOAM

Retainer, Foam Block

1шт.

11

87743310

SPACER

Fastener, 20.6mm

6шт.

12

87713668

FASTENER

Push In

6шт.

13

87494357

FOAM INSULATION

Floor Plate

1шт.
