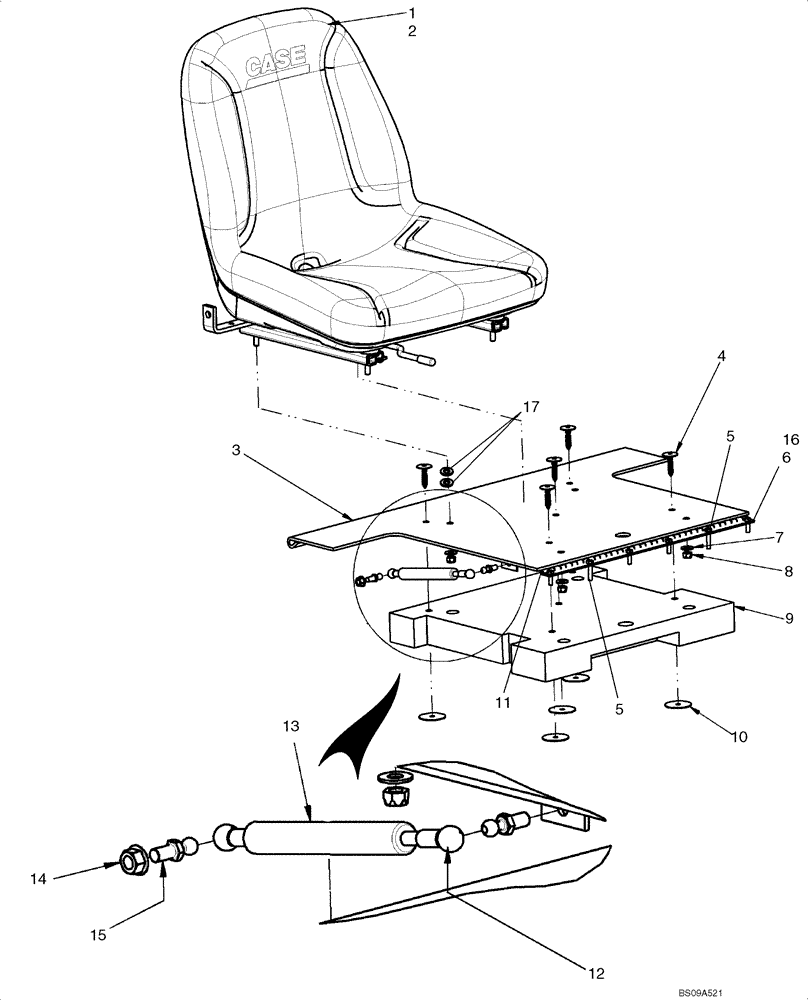

Запчасти Case 430 (09-40) - SEAT MOUNTING - STANDARD SEAT (09) - CHASSIS

1

87405117

SEAT

Seat, Mid-Back - Wheat Color; Incl. 2, 2A; Seat Production P/N 87402555; If Used

1шт.

1

87702543

SEAT

Non-Suspension; See Fig 09-40A

1шт.

2

86603490

SWITCH

Operator Presence; If Used

1шт.

2a

302137A2

HARNESS

Operator Presence Switch Harness With 2 Connectors; Not Illustrated; If Used

1шт.

3

87676122

PLATE

Seat Hinge Plate

1шт.

4

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push In Fastener

5шт.

5

80120101

BOLT

M6 x 30, 8.8 ZND; If Used

2шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

If Used

4шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

9628098

NUT,M8 x 1.25, Cl 10

If Used

4шт.

8

86629544

NUT,5/16” – 18, GR B

4шт.

9

87676124

FOAM INSULATION

Pad, Seat Noise Control

1шт.

10

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

5шт.

11

87676121

STIFFENER

Seat Hinge Stiffener

1шт.

12

254307A1

CLIP

If Used

2шт.

13

189787A2

SHOCK ABSORBER

1шт.

14

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

15

189609A1

BALL STUD,M8 x 1.25

Metric Ball Stud, 10mm Ball x M8 X 1.25 Thd

2шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4-6шт.

17

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

8шт.
