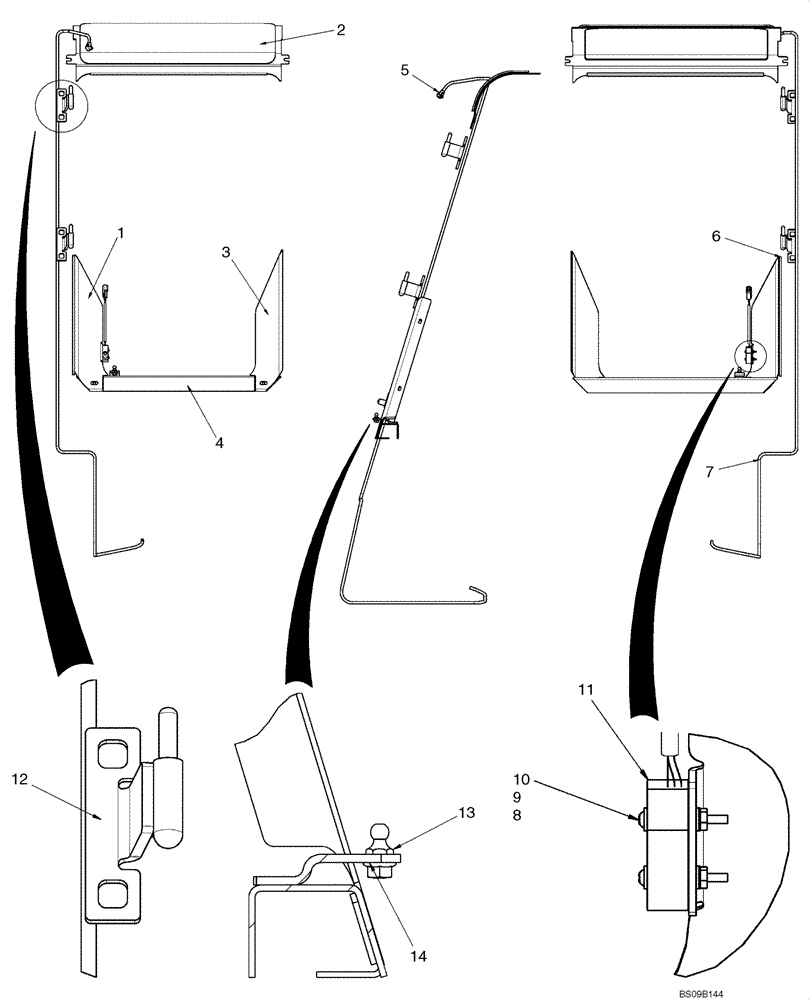

Запчасти Case 430 (09-24B) - CAB DOOR - VISOR (09) - CHASSIS

87485549

SERVICE KIT

Visor; Incl 1-14

1шт.

1

87717215

BRACKET

Bracket, Lower RH Door-Black

1шт.

2

87627521

WINDOW

Visor

1шт.

3

87717210

BRACKET

Bracket,Lower LH Door-Black

1шт.

4

87722347

PLATE

Threshold W/ Black

1шт.

5

87655056

NOZZLE

Washer

1шт.

6

87669915

PLATE

Spacer, Black

1шт.

7

87343662

WINDSHIELD WASHER

Tubing

1шт.

8

280859

NUT,Keps, #6-32

2шт.

9

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

10

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

6-32 X 1-3/8 Pan HD CR ZND

2шт.

11

87051110

DOOR SWITCH

Seat Bar

1шт.

12

87717283

HINGE

Door Hinge W/ Black

2шт.

13

87581669

BALL STUD,M8 x 29.50mm L

Ball Stud

1шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.
