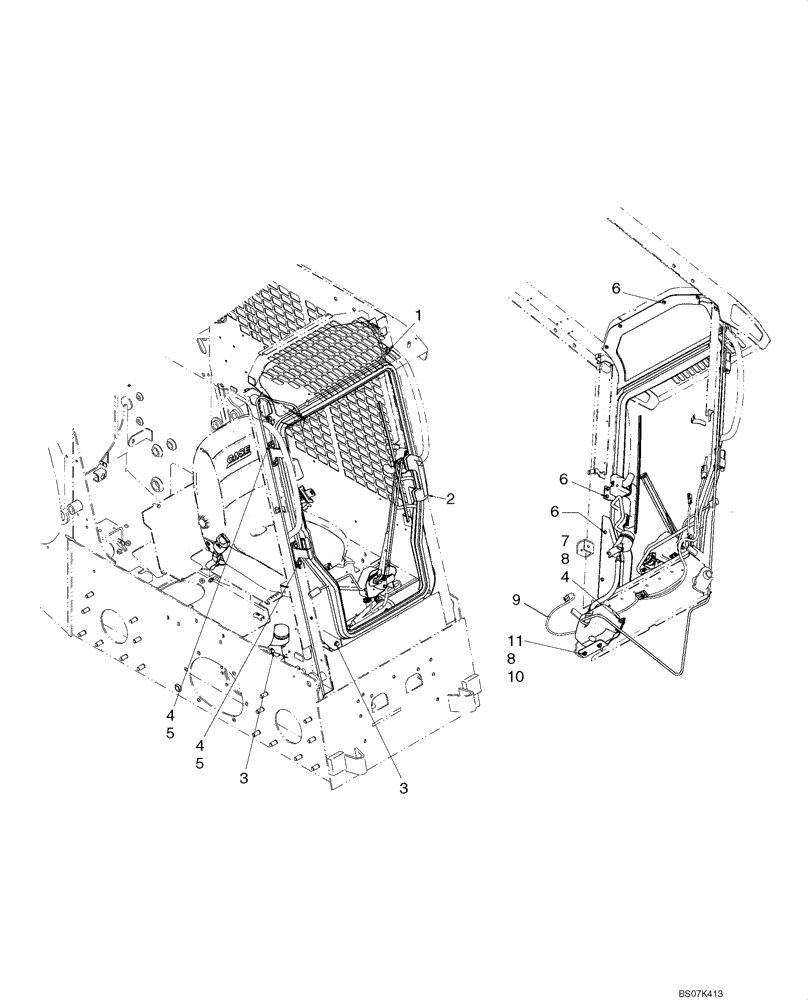

Запчасти Case 430 (09-24) - CAB DOOR - MOUNTING (09) - CHASSIS

87635322

SERVICE KIT

Kit, Front Door; Incl 1 - 13

1шт.

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

2

87627051

DOOR

See Fig. 09-26; If Used

1шт.

2

87485550

DOOR

See Fig 09-24A

1шт.

3

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

4шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

5

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

If Used

4шт.

5

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

6

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

If Used

10шт.

6

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

10шт.

7

43362

NUT,M8 x 1.25, Cl 10

4шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

9

87659212

HARNESS

Door Jumper Harness; If Used

1шт.

9

87747927

HARNESS

Door Jumper Harness

1шт.

10

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

12

87485549

SERVICE KIT

Visor CP; See Fig 09-24B

1шт.

13

87485548

SERVICE KIT

Washer Bottle CP; See Fig 09-24C

1шт.
