Запчасти Case 430 (09-15) - CONTROLLER - MOUNTING (PILOT CONTROL) (09) - CHASSIS

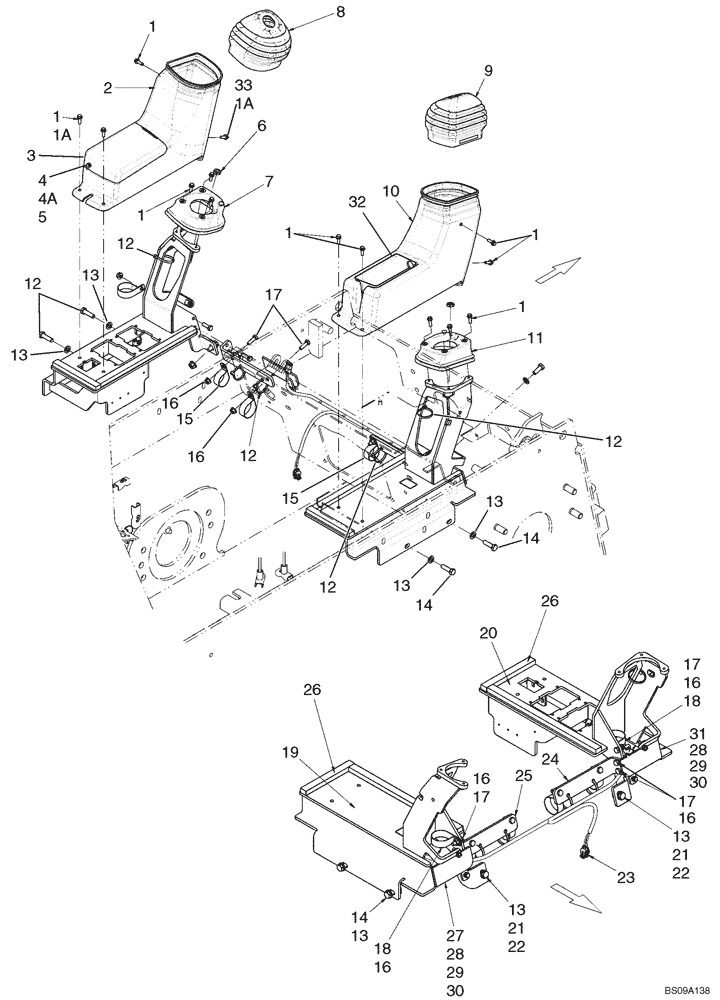

Схема запчастей Case 430 - (09-15) - CONTROLLER - MOUNTING (PILOT CONTROL) (09) - CHASSIS
16
15
13
21
33
17
19
27
22
1
14
18
12
13
1
16
17
1
29
28
17
3
28
18
1
16
1
15
26
12
7
1
14
12
12
13
13
13
26
23
13
4a
30
21
8
24
14
13
11
2
6
29
32
22
16
9
12
16
1a
25
30
20
31
1a
17
10
5
4
16

Артикул

Название

Примечание

Количество

1

87556251

SCREW,Hex, 1/4" - 20 x 3/4"

Screw, 1/4-20 X 3/4

9-14шт.

1a

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

If Used

6шт.

2

87665545

CONSOLE

Console, LH

1шт.

3

87647723

COVER

Fuse Cover

1шт.

4

87568437

WING NUT

Knob, Latch; If Used

1шт.

4

273890

THUMB SCREW,#10 - 32 x 3/4"

If Used

1шт.

4a

86625144

SNAP RING,#18, Ext

If Used

1шт.

5

236535A1

CLIP,ELECTRICAL

Clip, Latch; If Used

1шт.

5

87301324

NUT,Spring, M5 x 0.8

If Used

1шт.

6

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

2шт.

7

87739659

FOAM INSULATION

Seal, LH; Replaces 87646402

1шт.

8

87568426

BOOT

LH

1шт.

9

87568427

BOOT

RH

1шт.

10

87665543

CONSOLE

Console, RH

1шт.

11

87739658

FOAM INSULATION

Seal, RH; Replaces 87646401

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

13

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

15

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

16

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

10шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

18

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

19

87725332

BRACKET

Console, RH

1шт.

20

87725330

BRACKET

Console, LH

1шт.

21

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

22

43435

FLANGE NUT,Hex, M10 x 1.5

2шт.

23

87568434

HARNESS

Pilot Harness

1шт.

24

87740449

BRACKET

Hose Support, LH

1шт.

25

87740450

BRACKET

Hose Support, RH

1шт.

26

291308

SEALING STRIP,0.75" W x 0.5" Thick

1067mm (42 in.) Required

1шт.

27

87730823

PLATE

Filler Plate

1шт.

28

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

29

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

30

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

87730824

PLATE

Filler Plate

1шт.

32

291809

SEALING STRIP

0.3 FT Required, Cut As Needed

1шт.

33

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

If Used

2шт.

Выбрано товаров: 37
