Запчасти Case 430 (09-04) - COUPLER, MECHANICAL (ITALIAN) (09) - CHASSIS

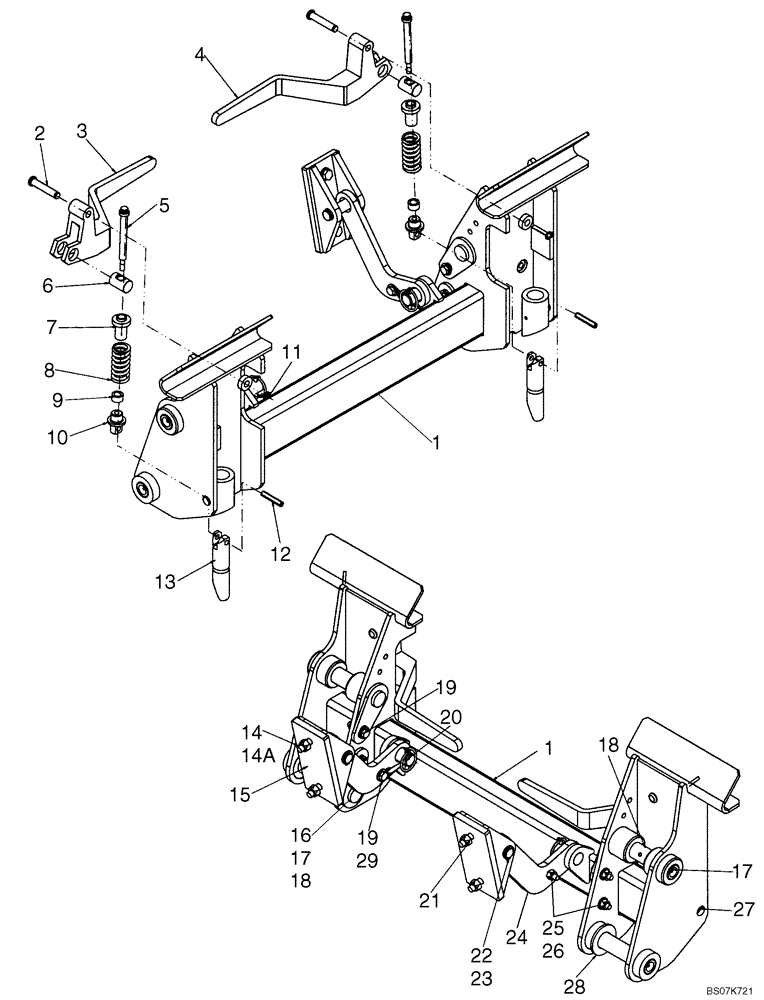

Схема запчастей Case 430 - (09-04) - COUPLER, MECHANICAL (ITALIAN) (09) - CHASSIS
8
4
26
21
11
13
7
1
23
14a
22
29
19
19
17
3
27
18
20
15
1
5
28
25
16
12
10
2
24
14
9
18
17
6

Артикул

Название

Примечание

Количество

1

417779A3

FRAME ASSY

Coupler, Italian On Road

1шт.

2

87387540

PIN,12.7mm OD x 67.55mm L

Handle Pivot

2шт.

3

86633196

HANDLE

Right Hand

1шт.

4

86633195

HANDLE

Left Hand

1шт.

5

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

CS12PT SHO PH .5 x 4.0

2шт.

6

9829733

PIN,25.4mm OD x 39mm L

2шт.

7

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

8

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

Compression

2шт.

9

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Bushing

2шт.

10

87579303

PIN,34.92mm OD x 43.6mm L

Pin

2шт.

11

87612753

RETAINER,#50, 0.46", Ext

Retaining Ring # 50

2шт.

12

86624092

PIN,9.53mm OD x 50.8mm L

Coiled Spring

2шт.

13

87413030

PIN

Latch Pin; If Used

2шт.

13

87758365

PIN,31.75mm OD x 142.3mm L

Latch Pin

2шт.

14

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

14a

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

15

398196A1

BRACKET

Bucket Lock

2шт.

16

906091R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

3/8 x 0.375 x Strg Pipe

4шт.

17

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

18

87659406

PIN,31.75mm OD x 169.2mm L

4шт.

19

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

20

A30338

PIN

2шт.

21

120080

BOLT,Hex, M12 x 45, 8.8

4шт.

22

D138889

PIN,69.98mm OD x 160mm L

Lift Cylinder Pivot

2шт.

23

86625151

RETAINER

Retaining Ring EXT HD #87

4шт.

24

398194A1

LINK

Bucket Lock; If Used

2шт.

24

84141396

LINK

Red Bucket Lock; If Used

2шт.

25

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

10шт.

26

86512554

NUT,M10 x 1.5, Cl 10

6шт.

27

87414

LUBE NIPPLE,1/4" - 28

2шт.

28

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

29

L78786

CABLE RETAINER

2шт.

Выбрано товаров: 32
