Запчасти Case 430 (08-20) - CONTROL VALVE - 87583285 VALVE ASSY (STANDARD MANUAL CONTROL) (08) - HYDRAULICS

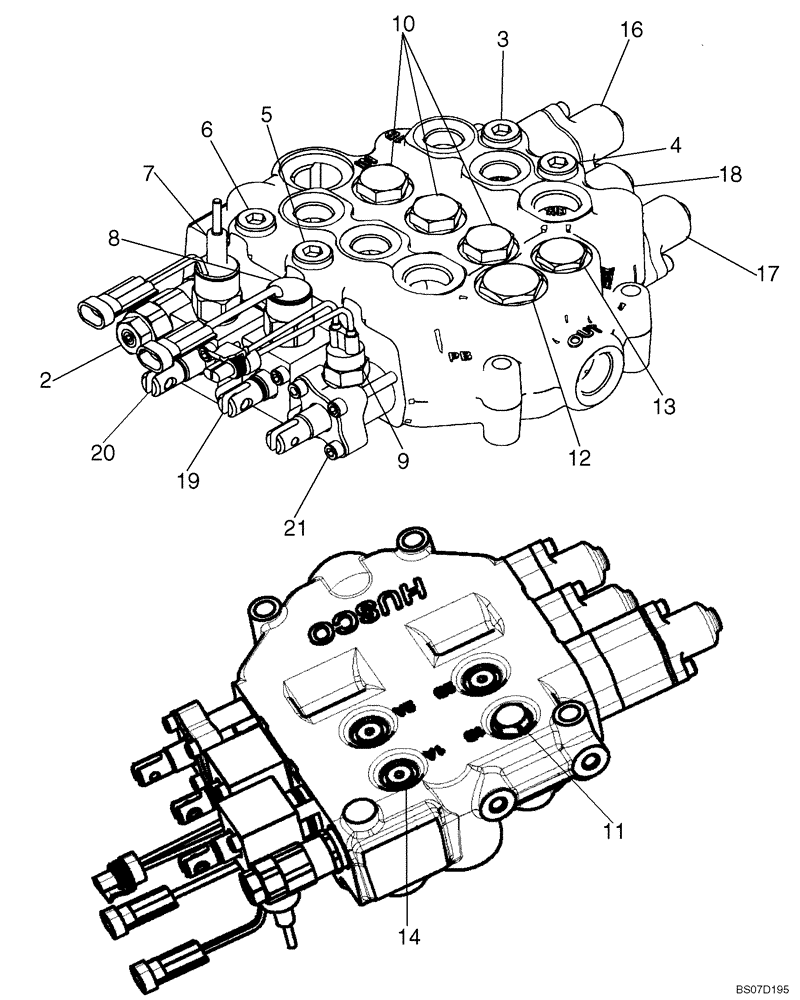

Схема запчастей Case 430 - (08-20) - CONTROL VALVE - 87583285 VALVE ASSY (STANDARD MANUAL CONTROL) (08) - HYDRAULICS
17
9
19
8
16
21
12
7
10
20
5
18
14
13
3
11
6
2
4

Артикул

Название

Примечание

Количество

87583285

VALVE

Manual Control Valve

1шт.

1

87610349

SEAL KIT

Seal Replacement Kit; See Fig. 08-22

1шт.

2

87610350

VALVE PRESSURE RELIE

Main Relief Valve, 210 Bar (3050 psi); See Fig. 08-23

1шт.

3

87576153

VALVE

Workport Relief Valve, 215 Bar; See Fig. 08-24

1шт.

4

87445935

VALVE

Workport Relief Valve, 230 Bar; See Fig. 08-24

1шт.

5

87445943

VALVE

Workport Relief Valve, 260 Bar; See Fig. 08-24

1шт.

6

87445932

VALVE

Workport Anti-Cavitation; See Fig. 08-24

1шт.

7

87445988

SOLENOID,Spool Lockout, With Manual Override

Spool Lock Out Solenoid, Manual; See Fig. 08-25

1шт.

8

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Spool Lock Out Solenoid, Non-Manual; See Fig. 08-26

1шт.

9

87446617

SWITCH

Auxiliary Spool Interlock Switch; See Fig. 08-27

1шт.

10

87576157

DAMPING VALVE

Check Valve Group; See Fig. 08-28

3шт.

11

87610351

VALVE,M14 x 1.5

Check Valve Group; See Fig. 08-28

1шт.

12

87576158

PLUG

Plug Assembly; See Fig. 08-28

1шт.

13

87576160

PLUG

Plug Assembly; See Fig. 08-28

1шт.

14

87610352

PLUG

Plug Assembly

3шт.

15

87576162

PLUG

Plug Assembly, Metric; Not Illustrated; See Fig. 08-28

1шт.

16

87576163

SPOOL

Spool End Group, Detent; See Fig. 08-29

1шт.

17

87576168

SPOOL

Spool End Group; See Fig. 08-30

1шт.

18

87576169

SPOOL

Spool End Group; See Fig. 08-31

1шт.

19

87611848

SPOOL

Spool End Group; See Fig. 08-26

1шт.

20

87611849

SPOOL

Spool End Group; See Fig. 08-25

1шт.

21

87611850

SPOOL

Spool End Group; See Fig. 08-27

1шт.

Выбрано товаров: 22
