Запчасти Case 430 (08-18) - CONTROL VALVE - 87583286 VALVE ASSY (08) - HYDRAULICS

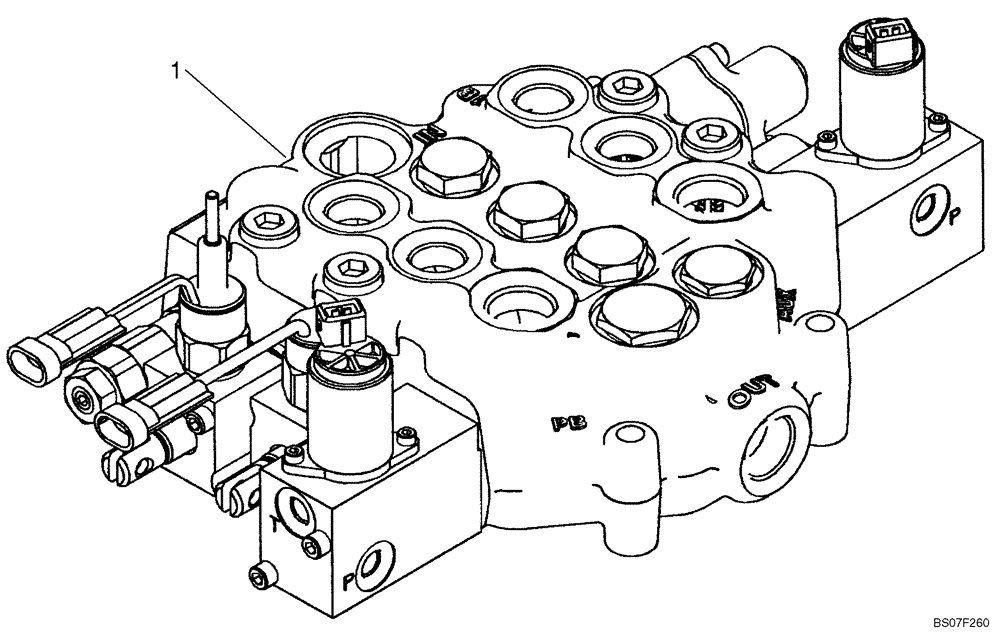

Схема запчастей Case 430 - (08-18) - CONTROL VALVE - 87583286 VALVE ASSY (08) - HYDRAULICS
1

Артикул

Название

Примечание

Количество

1

87583286

VALVE

Incl. 2 - 23

1шт.

2

87610349

SEAL KIT

Seal Replacement Kit; See Fig 08-22

1шт.

3

87610350

VALVE PRESSURE RELIE

Main Relief Valve; See Fig 08-23

1шт.

4

87576153

VALVE

Workport Relief Valve; See Fig 08-24

1шт.

5

87445935

VALVE

Workport Relief Valve; See Fig 08-24

1шт.

6

87445943

VALVE

Workport Relief Valve; See Fig 08-24

1шт.

7

87445932

VALVE

Workport Anti-Cavitation; See Fig 08-24

1шт.

8

87445988

SOLENOID,Spool Lockout, With Manual Override

Spool Lock Out Solenoid Manual; See Fig 08-25

1шт.

9

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Spool Lock Out Solenoid Non-Manual; See Fig 08-26

1шт.

10

87576154

SOLENOID

Hi-Flow Solenoids For EH Auxiliary; See Fig 08-34

2шт.

11

87576157

DAMPING VALVE

Check Valve Group; See Fig 08-28

3шт.

12

87610351

VALVE,M14 x 1.5

Check Valve Group; See Fig 08-28

1шт.

13

87576158

PLUG

See Fig 08-28

1шт.

14

87576160

PLUG

See Fig 08-28

1шт.

15

87576161

PLUG

1шт.

16

87610352

PLUG

Plug

3шт.

17

87576162

PLUG

See Fig 08-28

1шт.

18

87576163

SPOOL

Detent; See Fig 08-29

1шт.

19

87576169

SPOOL

See Fig 08-31

1шт.

20

87611845

SPOOL

EHPV; See Fig 08-34

1шт.

21

87611846

SPOOL

EHPV; See Fig 08-35

1шт.

22

87611848

SPOOL

Spool; See Fig 08-26

1шт.

23

87611849

SPOOL

See Fig 08-25

1шт.

Выбрано товаров: 23
