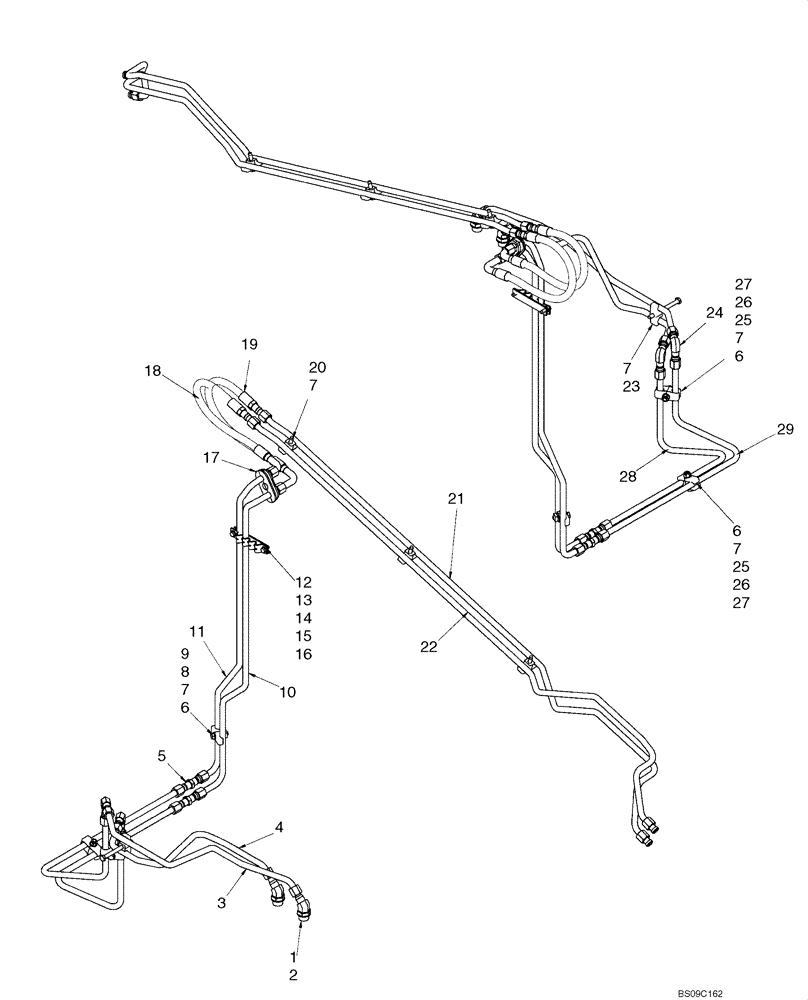

Запчасти Case 430 (08-15A) - HYDRAULIC SYSTEM, STANDARD (08) - HYDRAULICS

1

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 2

2шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

87522252

HYD TUBE,12.6 mm ID x 15.9 mm OD

Auxiliary

1шт.

4

87522262

HYD TUBE,12.6 mm ID x 15.9 mm OD x 500, 356.5 mm L

Auxiliary

1шт.

5

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

7

D120613

CLAMP,20mm ID

7шт.

8

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

9

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10 - 1.5

1шт.

10

87415448

TUBE,15.88 mm OD x 994.8, 208.2 mm L

Auxiliary

1шт.

11

87415446

TUBE,15.88 mm OD x 1023.2, 158.2 mm L

Auxiliary

1шт.

12

87029930

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

Hex Washer Head TPG5/16 x 6.2

1шт.

13

406941A1

BAR

Clamp Face

1шт.

14

406940A1

BAR

Clamp Back

1шт.

15

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

3шт.

16

87029931

SCREW,Hex Washer, 5/16" - 18 x 1"

Hex Washer Head TPG5/16 x 1.0

1шт.

17

87018001

SUPPORT

5/8 Hyd Tubes

2шт.

18

406240A1

HOSE ASSY.

Auxiliary

1шт.

19

406087A1

HOSE ASSY.

Auxiliary

1шт.

20

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

Hex Washer Head TPG3/8 x 1.75

3шт.

21

87024313

HYD TUBE,15.90 mm OD

1шт.

22

87024312

HYD TUBE,15.90 mm OD

1шт.

23

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

24

86512932

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

25

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

26

86512554

NUT,M10 x 1.5, Cl 10

2шт.

27

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

28

87424300

TUBE,15.88 mm OD x 516, 203 mm L

Auxiliary

1шт.

29

87411776

TUBE,15.88 mm OD x 581.8, 256.5 mm L

Auxiliary

1шт.
