Запчасти Case 430 (08-13) - CYLINDER - TILT (08) - HYDRAULICS

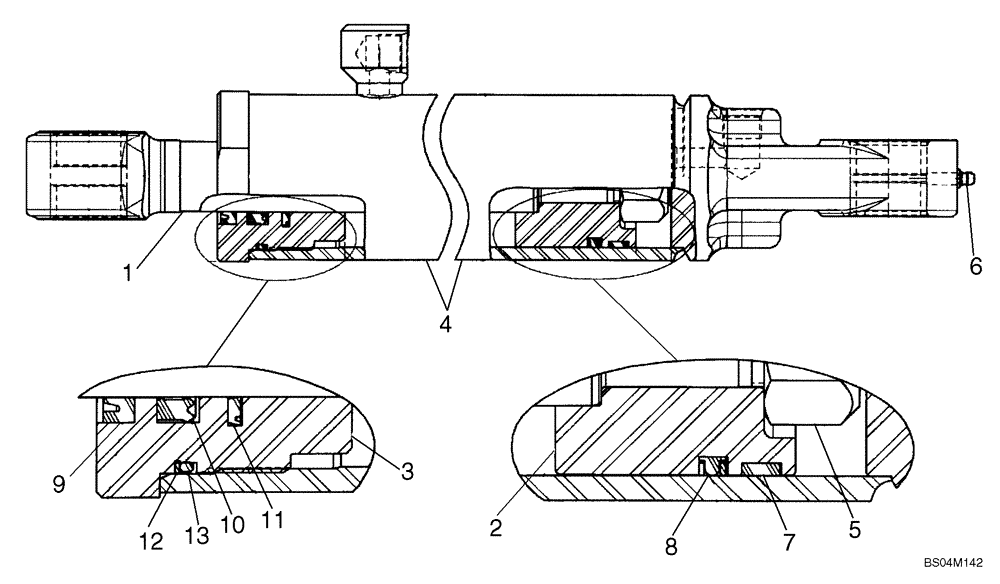

Схема запчастей Case 430 - (08-13) - CYLINDER - TILT (08) - HYDRAULICS
5
4
7
1
13
9
8
3
11
2
12
6
10

Артикул

Название

Примечание

Количество

87438187

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 370mm Stroke

Tilt; 2.750 Bore, 14.56 Stroke; Incl. 1 - 6 and Seal Kit 86613643 Ref 7 - 13

2шт.

87438187R

REMAN-HYD CYLINDER

430 SERIES 3 ASN 430 NA N7M479683 (1/08-)

2шт.

87438187C

CORE-HYD CYLINDER

Return Number

1шт.

1

87442323

ROD ASSY.,34.92mm OD x 576.07mm L

34.9 Dia, 31.8; Incl. Bushings, 86624450

1шт.

86624450

BUSHING

2шт.

2

87442321

PISTON

1шт.

3

86611141

HEAD (CYLINDER)

2.5 x 1.38

1шт.

4

86611135

CYLINDER

Incl. Bushings, 86624450

1шт.

86624450

BUSHING

2шт.

5

87301258

NUT,1"-14, GC

1.00-14

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

86613643

SEAL KIT

Seal, 2.75 x 1.38; Incl. 7 - 13

1шт.

7

773784

RING,Split, 63.5mm ID x 69.85mm OD x 9.53mm Thk

1шт.

8

86563840

SEAL

2.75 Piston

1шт.

9

86631609

WIPER SEAL,33.02mm ID x 47.73mm OD x 7.92mm Thk

1.38 Wiper

1шт.

10

86631606

SEAL,33.27mm ID x 48.84mm OD x 9.53mm Thk

1.38 Rod

1шт.

11

86631615

SEAL,34.54mm ID x 50.6mm OD x 3.12mm Thk

1.38 Buffer

1шт.

12

86536100

WASHER

1шт.

13

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

O-Ring

1шт.

Выбрано товаров: 19
