Запчасти Case 430 (08-07[1]) - HYDRAULICS - ATTACHMENT, PROPORTIONAL (WITH PILOT CONTROL) (08) - HYDRAULICS

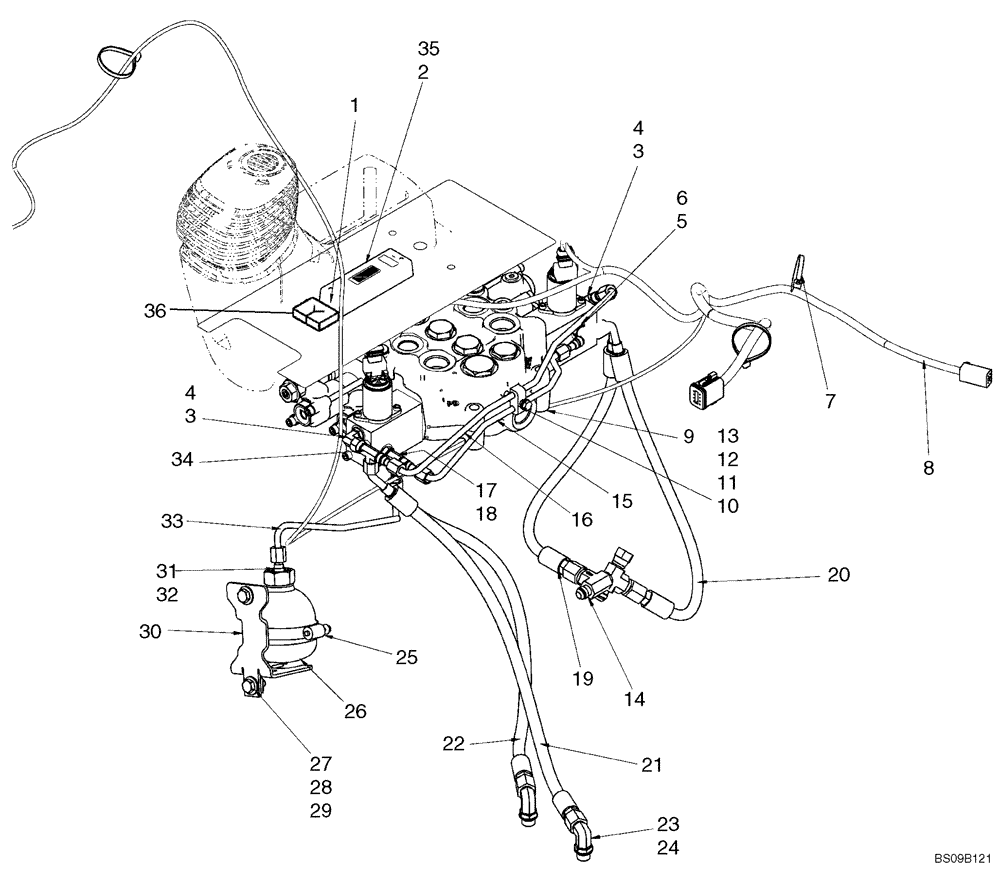

Схема запчастей Case 430 - (08-07[1]) - HYDRAULICS - ATTACHMENT, PROPORTIONAL (WITH PILOT CONTROL) (08) - HYDRAULICS
23
1
20
36
4
21
26
14
11
35
19
31
25
12
18
3
33
34
5
10
22
9
16
4
8
24
3
15
28
32
17
29
30
13
27
7
2
6

Артикул

Название

Примечание

Количество

87638361

SERVICE KIT

Kit, EH Proportional Auxiliary, Pilot Control

1шт.

1

100012

NUT,M4 x 0.7, Cl 8

If Used

2шт.

2

87657080

VALVE

PWM Driver

1шт.

3

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl 4

2шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

16989

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

Incl 6

1шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

8

87668739

HARNESS

Electro-Hydraulic Auxiliary; If Used

1шт.

8

87749672

HARNESS

Electro-Hydraulic Auxiliary

1шт.

9

87546975

HYDRAULIC VALVE

Control Valve, Pilot Control; See Fig 08-17

1шт.

10

608089

CLAMP

1шт.

11

80120101

BOLT

Bolt, M6 X 30 Cl 8.8

1шт.

12

86624181

WASHER,M6

1шт.

13

87030561

NUT,M6 x 1, Cl 8

1шт.

14

87438766

TEE

1шт.

15

87563970

HYD TUBE,6.35 mm OD

Tube, Pilot Pressure

1шт.

16

87564001

HYD TUBE,6.35 mm OD

Tube, EH Drain

1шт.

17

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl 18

1шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

87563974

HOSE

Hose, EH Supply, 424mm (16 11/16 in.) Length; Used On 420 - 440

1шт.

20

87653901

HOSE

Hose, Charge To EH, 460mm (18 1/8 in.) Length; Used On 410

1шт.

21

87460042

HOSE,6.35mm ID x 560mm L

Hose, Case Drain, 560mm (22 1/16 in.) Length; Used On 420 - 440

1шт.

22

87654423

HOSE

Hose, Case Drain, 585mm (23 in.) Length; Used On 410

1шт.

23

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 24

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

26

87376969

ACCUMULATOR

Hydraulic Accumulator, Pilot Control

1шт.

27

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

28

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

29

122158A1

NUT,M8, U

2шт.

30

87621245

ANGLE

Accumulator Mounting Bracket; If Used

1шт.

30

87473790

BRACKET

Accumulator Bracket

1шт.

31

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 32

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

87447764

HYD TUBE,6.35 mm OD

Tube, Pilot Pressure

1шт.

34

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

35

REF

INSTRUCTION

Double Sided Tape, 25.4mm (1 in.) X 150mm (6 in.) Length; If Used

1шт.

36

87729517

SEALING STRIP

Foam, Aux And Throttle

1шт.
