Запчасти Case 430 (08-06) - HYDRAULICS - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

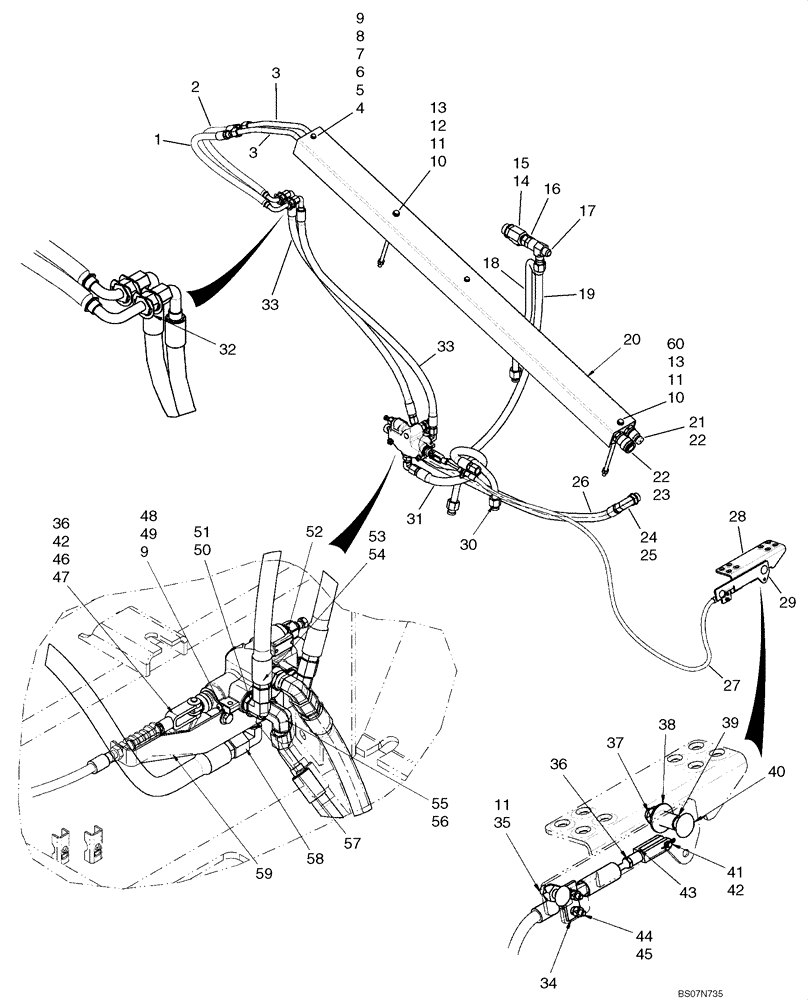

Схема запчастей Case 430 - (08-06) - HYDRAULICS - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS
6
23
20
22
59
9
60
2
53
25
39
4
56
47
44
40
14
34
9
7
11
19
5
22
49
36
13
38
50
21
29
12
32
45
30
24
33
3
33
54
36
41
26
46
8
28
52
43
16
31
10
55
11
27
11
3
58
48
10
17
15
18
42
57
35
37
51
13
1
42

Артикул

Название

Примечание

Количество

87638872

SERVICE KIT

Kit, Secondary Front Auxiliary; Incl 1 - 60

1шт.

1

87462215

HOSE ASSY.

Hose, Secondary Auxiliary, 633mm (24 15/16 in.)

1шт.

2

87444373

HOSE ASSY.,12.7mm ID x 583mm L

Hose, Secondary Auxiliary, 583mm (23 in.)

1шт.

3

87444371

HYD TUBE,15.88 mm OD

Tube, Secondary Auxiliary

2шт.

4

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

5

194739A1

LEDGER PLATE

2шт.

6

257857A1

CLAMP

2шт.

7

259905A1

SPACER

Spacer, 1/4 Sch 40 Pipe X 31 1/4 Lg

2шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

4шт.

10

86624977

BOLT,Hex, M10 x 245mm, Cl 8.8

2шт.

11

86512554

NUT,M10 x 1.5, Cl 10

3шт.

12

87447010

SPACER

1шт.

13

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

14

86624131

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

Incl 15

1шт.

15

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

17

87698812

HYD CONNECTOR

Tee, Swivel Run 37Fl 3/4 X 1 X 3.4; Use On High Flow Only

1шт.

18

87730806

TUBE,19.05 mm OD x 419.4, 175 mm L

Tube, Valve To Filter - Bypass

1шт.

19

87728981

HOSE

Hose, Tank Return, 1064mm (41 7/8 in.)

1шт.

20

87447965

COVER

Cover, Secondary Auxiliary Tube

1шт.

21

87417308

COUPLING, BREAK AWAY

Coupler, 1/2 Male Quick Disconnect; If Used

1шт.

21

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

22

595460

BHD LOCK NUT,7/8" - 14

2шт.

23

393394A1

COUPLING, BREAK AWAY

Coupler, 1/2 Female Quick Disconnect; If Used

1шт.

23

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

24

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 25

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

87728988

HOSE

Hose, Secondary Auxiliary Inlet, 1260mm (49 5/8 in.)

1шт.

27

87739944

CABLE,1732mm L

Secondary Auxiliary

1шт.

28

87423833

PEDAL ASSY.

If Used

1шт.

28

87741562

PEDAL

1шт.

29

87715341

PLATE

Mounting Plate

1шт.

30

87728999

TUBE,19.05 mm OD

Tube, High Flow Valve To Filter

1шт.

31

87728989

HOSE

Hose, Secondary Auxiliary Outlet, 694mm (27 5/16 in.)

1шт.

32

87301328

SNAP RING

Retaining Ring, External "E" Style #98 Plated

4шт.

33

87729003

HOSE

Hose, Secondary Auxiliary, 992mm (39 1/16 in.)

2шт.

34

H373779

LARGE PLATE

PLATE, LARGE Spacer

1шт.

35

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

36

86976064

JAM NUT,Jam, 1/4"-28, G5

2шт.

37

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

38

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1шт.

39

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

Bronze Bushing

1шт.

40

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

1шт.

41

87597960

CLEVIS PIN,6.35mm OD x 19.56mm L

1шт.

42

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

43

86520436

ADJUSTABLE CLEVIS,1/4" - 28

1шт.

44

87442439

ROD

1шт.

45

86512440

NUT,M6, Cl 10

2шт.

46

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

1шт.

47

87444160

CLEVIS

1шт.

48

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

49

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

50

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 51

2шт.

51

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

52

87017348

VALVE

Secondary Auxiliary Valve; See Fig 08-38

1шт.

53

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

Incl 54

1шт.

54

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

55

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 56

1шт.

56

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

57

129878A1

FITTING

1шт.

58

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

59

87739947

BRACKET

1шт.

60

87447009

BRACKET

1шт.

Выбрано товаров: 64
