Запчасти Case 430 (08-05) - HYDRAULICS - SELF LEVELING (08) - HYDRAULICS

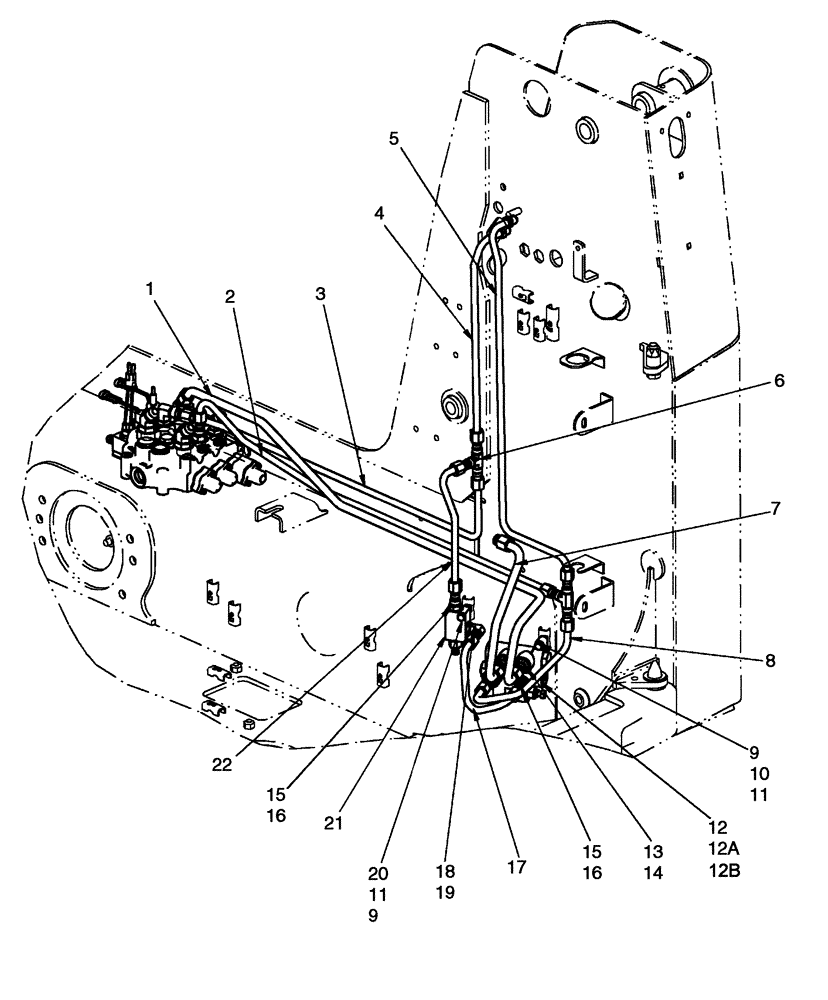

Схема запчастей Case 430 - (08-05) - HYDRAULICS - SELF LEVELING (08) - HYDRAULICS
1
18
21
20
2
9
16
10
11
5
15
6
3
8
16
14
9
13
12
11
7
4
12a
19
22
12b
17
15

Артикул

Название

Примечание

Количество

87638293

SERVICE KIT

Kit, Single Hydraulic Self Level; Incl 1 - 22

1шт.

1

87446001

HYD TUBE,15.88 mm OD x 897, 641.2 mm L

Tube, Lift (Lower)

1шт.

2

87593420

HYD TUBE,9.4 mm ID x 12.7 mm OD x 919.9, 178.9 mm L

Tube, Tip (Dump)

1шт.

3

87436668

HYD TUBE,12.7 mm OD

Tube, Tip (Curl)

1шт.

4

87436539

HYD TUBE,12.7 mm OD

Tube, Tip (Curl)

1шт.

5

87593421

HYD TUBE,9.4 mm ID x 12.7 mm OD

Tube, Tip (Dump)

1шт.

6

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

7

87593425

HYD TUBE,11.68 mm ID x 15.9 mm OD

Valve Out

1шт.

8

87593422

HYD TUBE,9.4 mm ID x 12.7 mm OD

Tube, Valve To Bucket Base

1шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

12

87447793

VALVE

Self Level; Incl 12A

1шт.

12a

87535230

ZERO DETANT KIT

VALVE KIT Kit, Seal

1шт.

12b

345682A1

VALVE

1шт.

13

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 14

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

15

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 16

3шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

17

87421454

HYD TUBE,12.7 mm OD x 132, 101.7 mm L

Self Level To Relief

1шт.

18

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 19

1шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

21

294650A1

VALVE

Relief Valve

1шт.

22

87445306

HYD TUBE,12.7 mm OD

1шт.

Выбрано товаров: 25
