Запчасти Case 430 (08-01) - HYDRAULICS - TILT (08) - HYDRAULICS

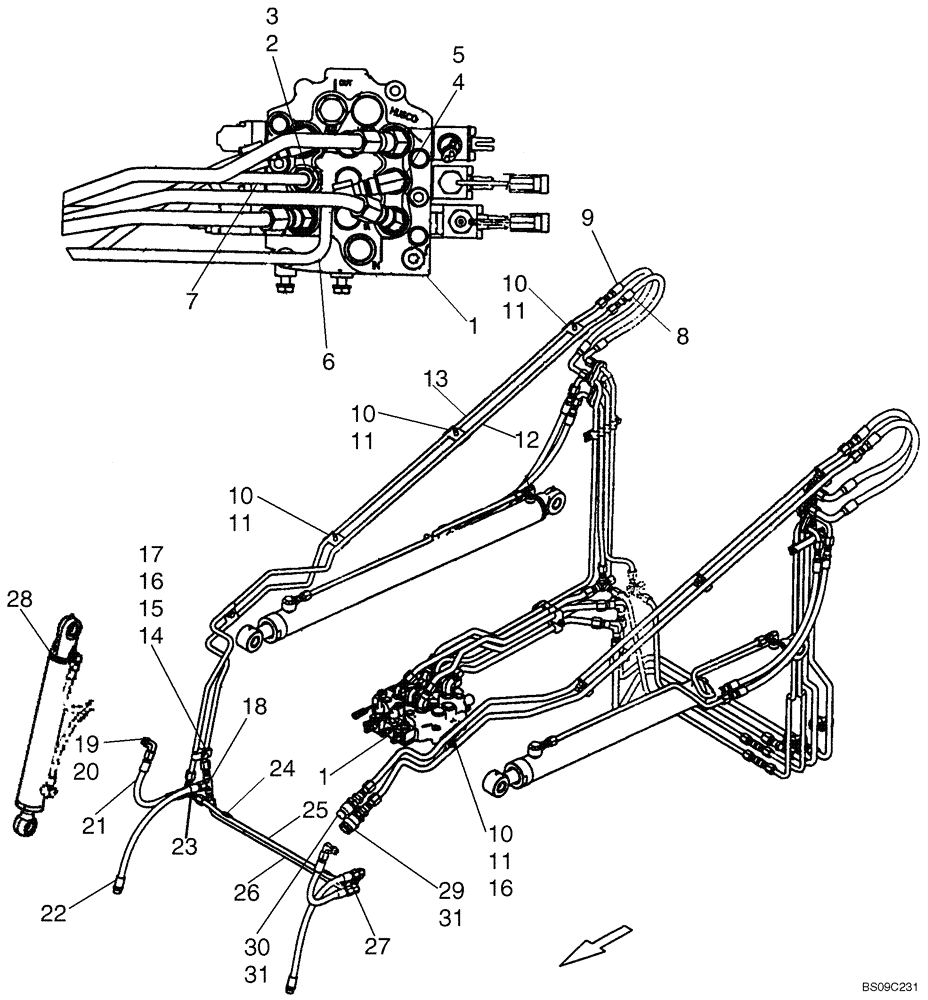

Схема запчастей Case 430 - (08-01) - HYDRAULICS - TILT (08) - HYDRAULICS
13
5
17
21
6
11
9
11
20
8
10
15
7
2
23
4
31
29
16
11
12
10
24
11
31
27
26
1
14
25
16
10
18
22
19
28
1
3
30
10

Артикул

Название

Примечание

Количество

1

87583285

VALVE

Control Valve, Mechanical Units; See Fig. 08-20

1шт.

1

87546974

HYDRAULIC VALVE

Control Valve, Pilot Units; See Fig. 08-18

1шт.

2

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl. 3

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl. 5

1шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87423368

HYD TUBE,12.7 mm OD x 799.6, 578.2 mm L

1/2 Tube, Curl

1шт.

7

87445747

HYD TUBE,.50" OD

1/2 Tube, Dump

1шт.

8

406242A1

HOSE ASSY.,9.53mm ID x 580mm L

580 mm (22.83 in)

1шт.

9

406088A1

HOSE ASSY.,9.53mm ID x 600mm L

600 mm (23.62 in)

1шт.

10

86501706

CLAMP

Double

4-5шт.

11

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4-5шт.

12

87531091

HYD TUBE

1/2 Tube, Dump

1шт.

13

406336A1

TUBE

1/2 Tube, Curl

1шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

15

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10 -1.5

1шт.

16

140017

WASHER,M10 x 20mm OD x 2mm Thk

If Used

1шт.

16

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

17

D120679

CLAMP,Tube, 1/2"

1/2 in

1шт.

18

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

19

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 20

2-4шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

87387193

HOSE ASSY.,9.53mm ID x 355mm L

355 mm, 14 in; Dump

2шт.

22

373241A3

HOSE ASSY.,9.53mm ID x 460mm L

Curl

2шт.

23

D124661

ELBOW

Side Outlet

1шт.

24

H434900

CLAMP

2шт.

25

373223A3

TUBE,610, 31 mm Length

Dump

1шт.

26

373225A3

TUBE,584, 50 mm Length

Curl

1шт.

27

216791

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1-2шт.

28

87438187

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 370mm Stroke

Tilt; See Figure 08-13

2шт.

87438187R

REMAN-HYD CYLINDER

430 SERIES 3 ASN 430 NA N7M479683 (1/08-)

2шт.

87438187C

CORE-HYD CYLINDER

Return Number

1шт.

29

393394A1

COUPLING, BREAK AWAY

Quick Coupling, Female; If Used

1шт.

29

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

30

87417308

COUPLING, BREAK AWAY

Quick Coupling, Male; If Used

1шт.

30

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

31

595460

BHD LOCK NUT,7/8" - 14

2шт.

Выбрано товаров: 37
