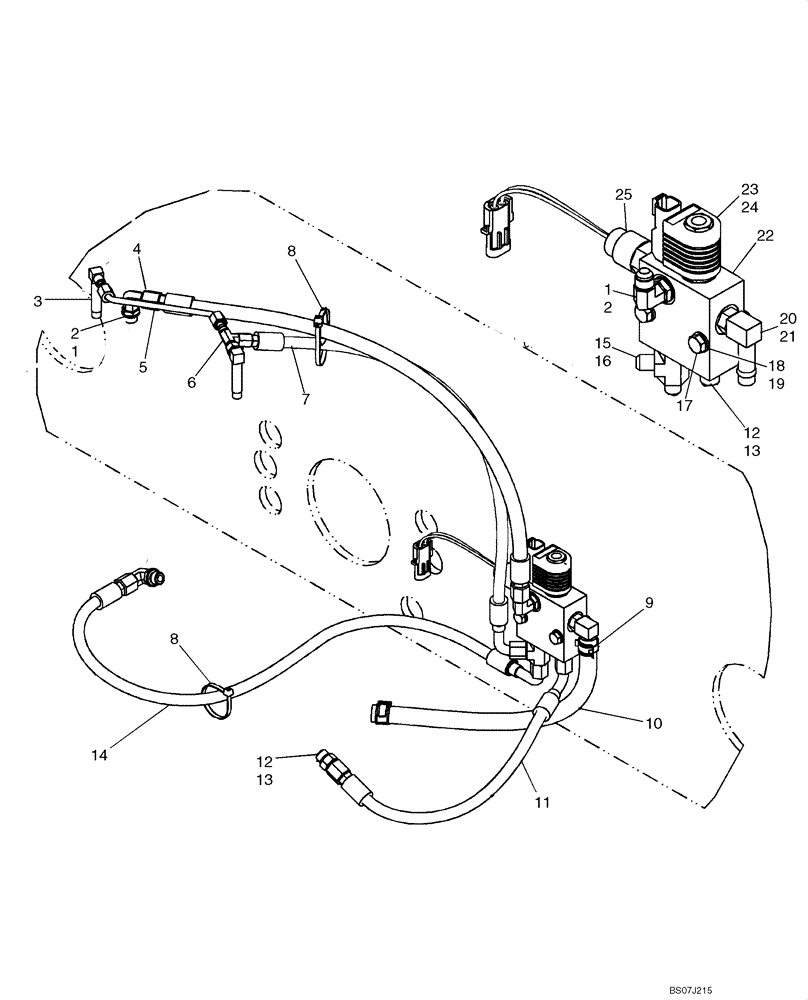

Запчасти Case 430 (07-01) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 2

3шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

3

H331884

ELBOW

90 Deg. Elbow, Long

2шт.

4

87516039

HOSE,9.53mm ID x 649.8mm L

Hose, Charge To Brake, 649mm (25 9/16 in.)

1шт.

5

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

6

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

7

87516040

HOSE,6.35mm ID x 600mm L

Hose, 600mm (23 5/8 in.)

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

9

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

10

87022177

HOSE,12.7mm ID x 340mm L

Drain

1шт.

11

87022437

HOSE ASSY.

Brake Hose, 420mm (16 17/32 in.); If Used

1шт.

11

87749004

HOSE

Brake Hose, 300mm (11.81 in); If Used

1шт.

12

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 13

2шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

14

87022436

HOSE ASSY.

Brake Hose, 815mm (32 3/32 in.)

1шт.

15

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 16

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

18

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

19

87030567

SQUARE NUT

2шт.

20

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 21

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

87021047

BRAKE VALVE

Incl 23 - 25

1шт.

23

87424182

BRAKE VALVE

Solenoid Valve

1шт.

24

87433496

COIL

1шт.

25

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.
