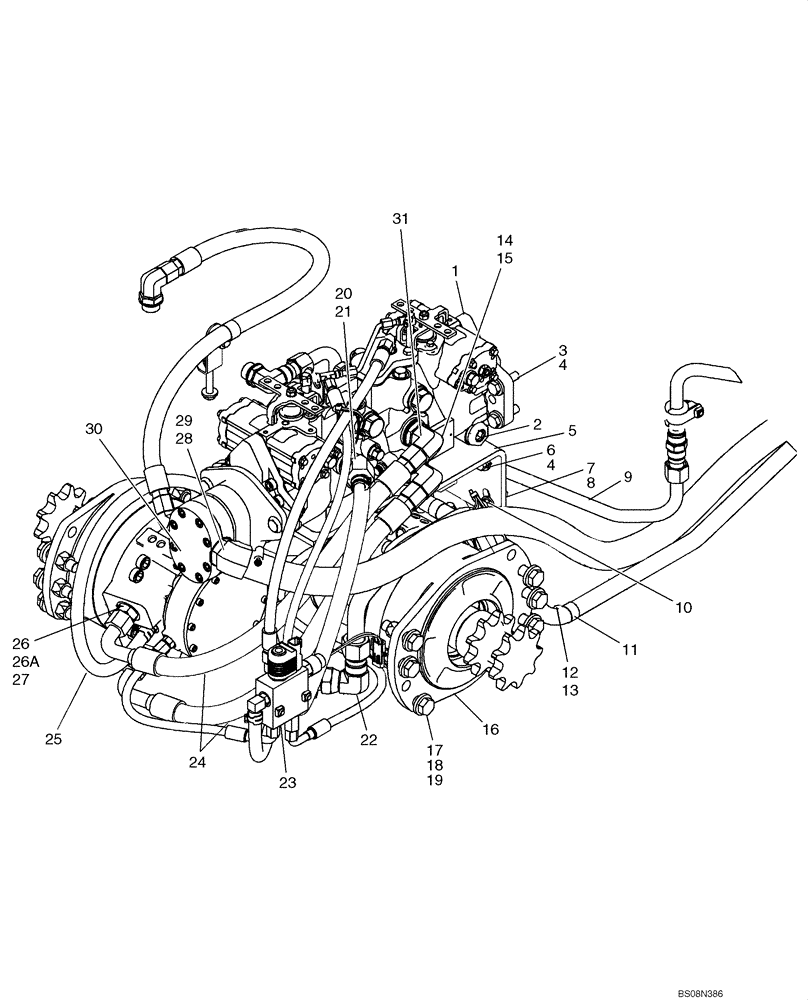

Запчасти Case 430 (06-18) - HYDROSTATICS - PUMP TO DRIVE MOTORS (06) - POWER TRAIN

2

87033027

ADAPTER

1шт.

1

87643160

PUMP,42.9 CC

M46 Tandem Pump; See Fig 06-38 - 06-42

1шт.

87643160R

REMAN-HYD PUMP

430 SERIES 3 ASN N7M479683 (1/08-)

1шт.

87643160C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

5

87627383

SUPPORT

Pump Support

1шт.

6

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

7

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

8

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

9шт.

9

87445138

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

11

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1-2шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1-2шт.

13

87030567

SQUARE NUT

1-3шт.

14

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl 15

1-2шт.

15

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-2шт.

16

87035341

HYDRAULIC MOTOR,470CC

Drive Motor, MCR05 SAHR 28 CID 9 TOOTH; See Fig 06-43 - 06-45

2шт.

16

87035341R

REMAN-HYD MOTOR

REMANUFACTURED HYD MOTOR

2шт.

16

87035341C

CORE-MOTOR HYDRAULIC

Return Number, HYD MOTOR

2шт.

17

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

12шт.

18

86512555

NUT,M16 x 2, Cl 10

12шт.

19

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

20

87021779

FITTING,45 Degree, 5/8" Hose x 1 1/16"-12 ORB Beaded

Incl 21

1шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

86050288

ELBOW,90 Degree, 1-5/16" - 12 JIC x 1-5/16" - 12, 37 Degrees Fem Sw

1шт.

23

REF

INSTRUCTION

Brake System; See Fig. 07-01

1шт.

24

87516012

HOSE,19.05mm ID x 670mm L, SAE 100R13

Hose, 670 mm (26.38 in); If Used, Straight Fitting And One 90 Degree Fitting

2шт.

24

87735183

HOSE,19.05mm ID x 705mm L

Hose, 705 mm (27.76 in); If Used, Two 90 Degree Fittings

2шт.

25

87022174

HOSE ASSY.

Case Drain Hose, 950mm (37.40 in)

1шт.

26

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 27; If Used

3шт.

26a

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3/4" Tube; Incl. 27, If Used

2шт.

27

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2-3шт.

28

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 29

1шт.

29

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

30

87024695

PUMP,36 CC

Gear Pump; See Fig. 06-30

1шт.

87024695R

REMAN-HYD PUMP

430 NA N7M479683; 430 EU N7M479546 (1/08-)

1шт.

87024695C

CORE-HYDRAULIC PUMP

Return Number

1шт.

31

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

STR -12 ORFS X 1-5/16-12 ORB

2шт.
