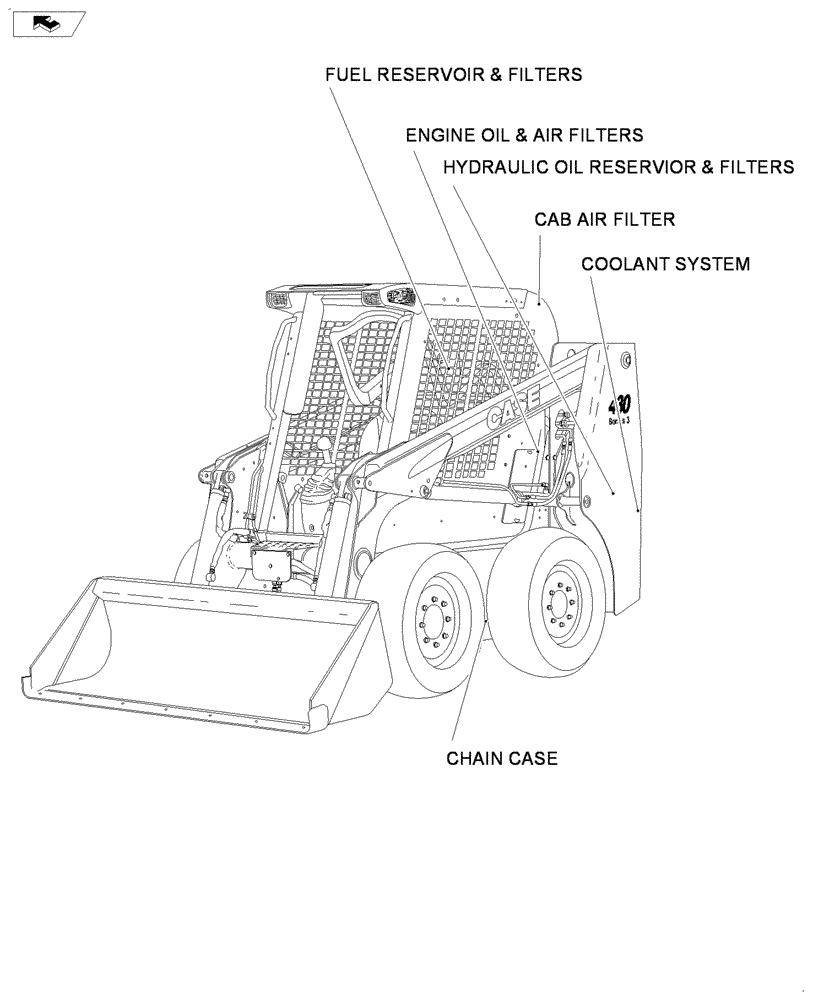

Запчасти Case 430 (00-05) - FILTERS AND CAPACITIES (00) - PICTORIAL INDEX

Cooling System Capacity, 11.36 Liters (12 Quarts)

1шт.

Coolant Type, CNH XHD Coolant-Antifreeze

1шт.

87679496

ENGINE OIL FILTER

ENGINE OIL

1шт.

Engine Oil Capacity With Filter Change, 8.52 Liters (2.25 Gallons)

1шт.

Engine Oil Capacity With Filter Change, 8.52 Liters (2.25 Gallons)

1шт.

Engine Oil Type, CASE No. 1 SAE 10W30

1шт.

Engine Oil Type, CASE No. 1 SAE 15W40

1шт.

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

ENGINE AIR, Outer

1шт.

222422A1

AIR FILTER

ELEMENT, FILTER ENGINE AIR, Inner

1шт.

87656118

CAB FILTER,362mm L x 160mm W x 24mm Thk, Charcoal

CAB AIR, Charcoal Filter for Cab Heater & A/C

1шт.

87010593

ELEMENT

HYDRAULIC OIL FILTER

1шт.

HF6553

HYDRAULIC OIL FILTER,SPIN-ON

HYDRAULIC, Hydraulic Supply & Return, Ship Direct Part

1шт.

H151399

FILTER STRAINER

HYDRAULIC OIL, Hydrostatics - Pump, Supply & Return

1шт.

Hydraulic Oil Capacity Reservoir, 26.89 Liters (7.1 Gallons)

1шт.

Hydraulic Oil Capacity, Entire System, 49.97 Liters (13.2 Gallons)

1шт.

Hydraulic Oil Type, CASE No. 1 SAE 10W30

1шт.

87679502

FUEL FILTER

FUEL

1шт.

87548612

FUEL FILTER

FUEL, In-Line

1шт.

Chain Case Oil Capacity (Each), 3.79 Liters (4 Quarts)

1шт.

Chain Case Oil Type, CASE No. 1 SAE 10W30

1шт.

Fuel Tank Capacity, 88.2 Liters (23.3 Gallons), No. 2 Diesel

1шт.
