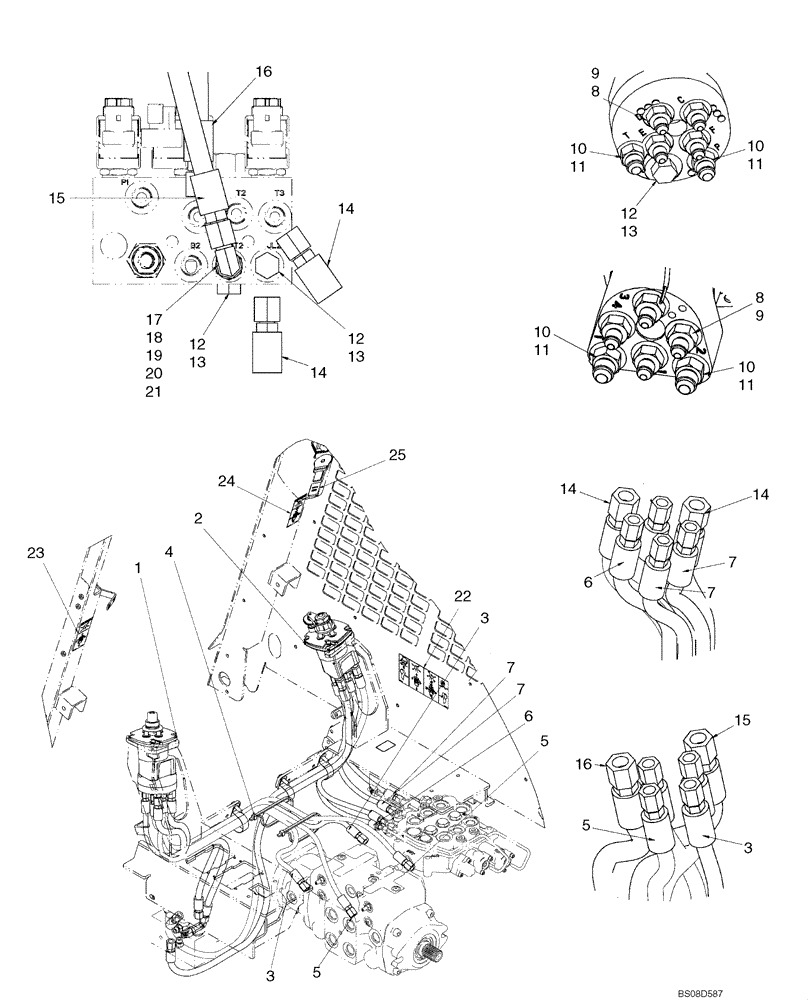

87616983
SERVICE KIT
Kit, ISO Pattern Controls; Incl 1 - 25
1шт.
1
87600622
CONTROL BLOCK
Joystick Valve, ISO Pattern, LH; See Fig. 06-03
1шт.
2
87600623
VALVE
Joystick Valve, ISO Pattern, RH; See Fig. 06-04
1шт.
3
87584064
HYDRAULIC HOSE,6.35 mm ID x 845.00 mm
Pilot
2шт.
4
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP
2шт.
5
87584065
HYDRAULIC HOSE,6.35 mm ID x 975.00 mm
Pilot
2шт.
6
87604062
HOSE,6.35mm ID x 590mm L
Pilot Hose, 590mm (23 7/32 in.)
2шт.
7
87604069
HOSE,6.35mm ID x 490mm L
Pilot Hose, 490mm (19 9/32 in.)
2шт.
8
139398
HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC
Incl 9
8шт.
9
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
8шт.
10
76350
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
Incl 11
4шт.
11
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
4шт.
12
76349
PLUG,9/16" - 18 ORB
Incl 13
3шт.
13
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
3шт.
14
87684218
HOSE,9.53mm ID x 1300mm L
Hose, Joystick Supply/Drain, 1300mm (51 3/16 in.)
2шт.
15
87604071
HOSE
Joystick Supply, 680mm (26 3/4 in.)
1шт.
16
87684180
HOSE,9.53mm ID x 620mm L
Hose, Joystick Drain, 620mm (24 13/32 in.)
1шт.
17
86526
ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB
Incl 18
1шт.
18
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
87573371
ADAPTER
Adapter, 3/8 in. Male X 3/8 in. Female; Incl 20, 21
1шт.
20
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
21
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
22
87715688
DECAL
Decal, Control Identification, ISO - Pattern
1шт.
23
87715691
DECAL
Decal, ISO - Pattern, LH
1шт.
24
87715692
DECAL
Decal, ISO - Pattern, RH
1шт.
25
87746891
DECAL
Decal, ISO - Pattern
1шт.
