Запчасти Case 420 (95.016.AAB) - ANGLE BROOM, 420 (95) - CE ATTACHMENTS

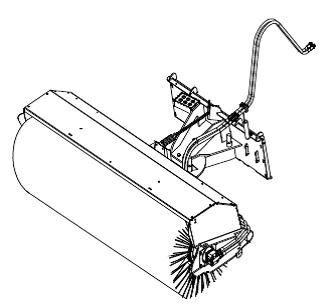

Схема запчастей Case 420 - (95.016.AAB) - ANGLE BROOM, 420 (95) - CE ATTACHMENTS

Артикул

Название

Примечание

Количество

1

84215694

ATTACHMENT

72'' Angle Broom W/ Poly/Wire Comb Brush, Incl Mounting Bracket, Hoses, Quick Disconnects and Parking Stands to Support Brush Head When Dismounted

1шт.

Std Aux Boom Hydraulics Reqd, Std Flow Reqd, Front Elec and 2nd Aux Opt

1шт.

Model Compatibility: SR130, SR150, SR160, SR175, SV185, SR200, SR210, SR220, TR270, 410, 420, 430, 440, 435, 420CT

1шт.

2

84215695

ATTACHMENT

84'' Angle Broom W/ Poly/Wire Comb Brush, Incl Mounting Bracket, Hoses, Quick Disconnects and Parking Stands to Support Brush Head When Dismounted

1шт.

Std Aux Boom Hydraulics Reqd, Std Flow Reqd, Front Elec and 2nd Aux Opt

1шт.

Model Compatibility: SR175, SV185, SR200, SR210, SR220, SV250, SR250, SV300, TR270, TR320, TV380, 410, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT

1шт.

3

84215697

ATTACHMENT

Universal Hydraulic Angle Kit, Incl Diverter Valve, Cylinder, Hoses, Wiring and Switch Box Mounted in Cab, Order as Needed

1шт.

4

84215698

ATTACHMENT

14 Pin Hydraulic Angle Kit, Incl Diverter Valve, Cylinder, Hoses, Wiring for Loaders Equipped W/ 14 Pin Boom Connector, Order as Needed

1шт.

5

84215699

ATTACHMENT

2nd Aux Hydraulic Angle Kit, Incl Cylinder, Hoses, and Quick Disconnects for Loaders Equipped W/ 2nd Aux Function, Order as Needed

1шт.

6

87383458

ADAPTER

Wire Harness for 85XT, 90XT, 95XT, Use W/ 84215698, Adapts Pre - 9/1/2001 Units W/ 8 Pin Boom Connector, Order as Needed

1шт.

7

84376838

BRUSH

Polywire Replacement for 72'' Broom

1шт.

8

84376839

BRUSH

Polywire Replacement Sets for 84'' Broom

1шт.

Выбрано товаров: 12
