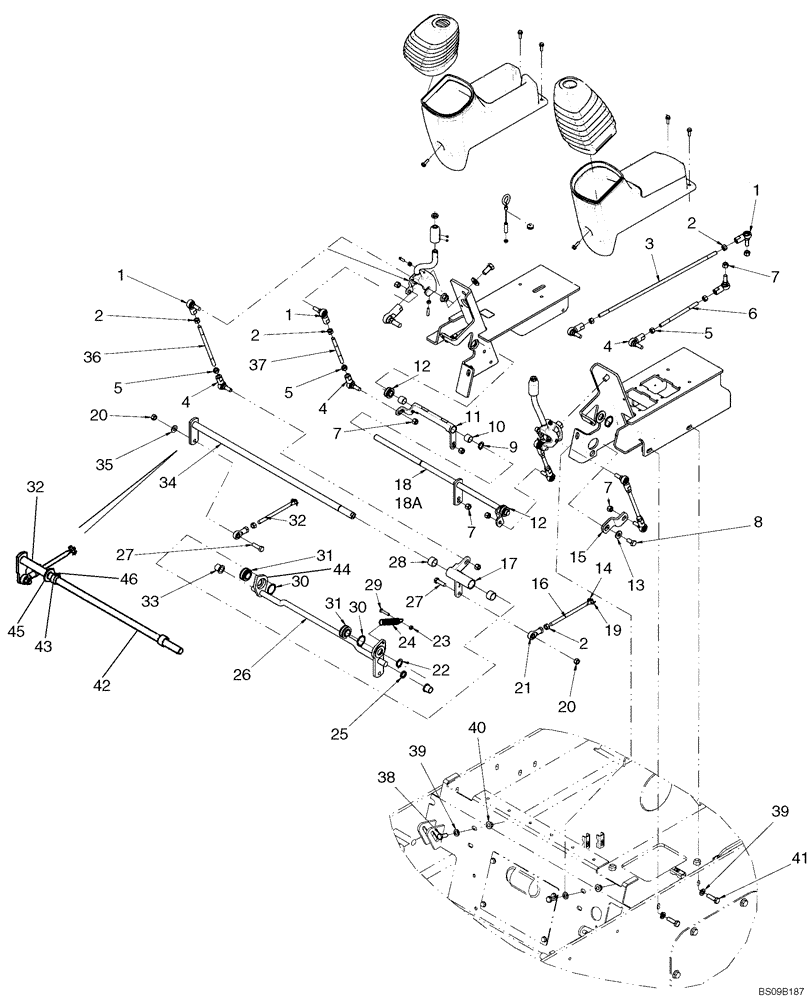

Запчасти Case 420 (09-18) - LOADER & GROUND DRIVE CONTROL - LINKAGE (09) - CHASSIS

1

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

6шт.

2

86509310

NUT,3/8" - 24, Gr 5

8шт.

3

87548973

ROD

Linkage Rod, 439mm (17 9/32 in.) Length

1шт.

4

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

6шт.

5

87030547

NUT,3/8" - 24, LH Thd, Gr 5

6шт.

6

87548972

ROD

Linkage Rod, 148mm (5 13/16 in.) Length

1шт.

7

80855

NUT,Hex, 3/8" - 24

12шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

9

87034506

RETAINER

Retaining Ring, External, #62; If Used

1шт.

10

409844A1

BEARING, NEEDLE,Needle, 15.88mm ID x 20.64mm OD x 15.9mm W

15.88 ID X 20.64 OD X 15.9 Wide

2шт.

11

367585A2

CRANK

1шт.

12

409846A3

SPHERICAL BEARING,15.88mm ID x 31.62mm OD x 15.9mm W

Spherical Bearing, 5/8 Shaft; If Used

2шт.

13

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

3шт.

14

234726

CLEVIS PIN,6.29mm OD x 20mm L

2шт.

15

87458510

ARM

Replaces 377410A2

1шт.

16

87458662

ROD

1шт.

17

385783A3

CRANK

1шт.

18

367583A4

LEVER ASSY.

If Used

1шт.

18a

87458514

ROD ASSY.

With Drive Control

1шт.

19

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

20

9628503

NUT,3/8"-16, G5

2шт.

21

86500348

BALL JOINT HEAD,3/8" - 24

2шт.

22

87034507

SNAP RING,#75, Ext

If Used

1шт.

23

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4-5шт.

24

120952A1

SPRING

If Used

1шт.

25

409856A1

SPACER

If Used

1шт.

26

87458511

SHAFT

If Used

1шт.

27

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

28

409845A1

BEARING, NEEDLE,Needle, 19.05mm ID x 25.4mm OD x 15.9mm W

19.05 ID X 25.40 OD X 15.9 Wide

2шт.

29

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

If Used

1шт.

30

87034509

RETAINER

Retaining Ring, External #118; If Used

4шт.

31

409847A3

SPHERICAL BEARING,19.05mm ID x 37.97mm OD x 19.1mm W

Spherical Bearing, 3/4 Shaft; If Used

2шт.

32

87458660

ROD

1шт.

33

367582A1

BUSHING,15.88mm ID x 19.05mm OD x 19.1mm L

Flanged; If Used

2шт.

34

385784A2

ROD ASSY.

Loader Control Rod; If Used

1шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

If Used

1шт.

36

180682A1

STEM

Linkage Rod, 185.5mm (7 5/16 in.) Length

2шт.

37

249367A2

ROD

Rod, 115mm (4 33/64 in.) Length

2шт.

38

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

39

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

40

43435

FLANGE NUT,Hex, M10 x 1.5

2шт.

41

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

42

87752562

SERVICE KIT

Kit, Control Rod; Incl 42, 43, 45, 46

1шт.

42

87740928

ROD

Rod, Loader Control; If Used

1шт.

43

87608769

COLLAR

Collar

1шт.

44

87458665

BALL BEARING,17 mm ID x 35 mm OD x 10 mm

2шт.

45

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

46

86516064

SET SCREW,M6 x 6mm, Cl 12.9

2шт.
