Запчасти Case 420 (06-19) - HYDROSTATICS - PUMP FITTINGS (420 WITH PILOT CONTROL) (06) - POWER TRAIN

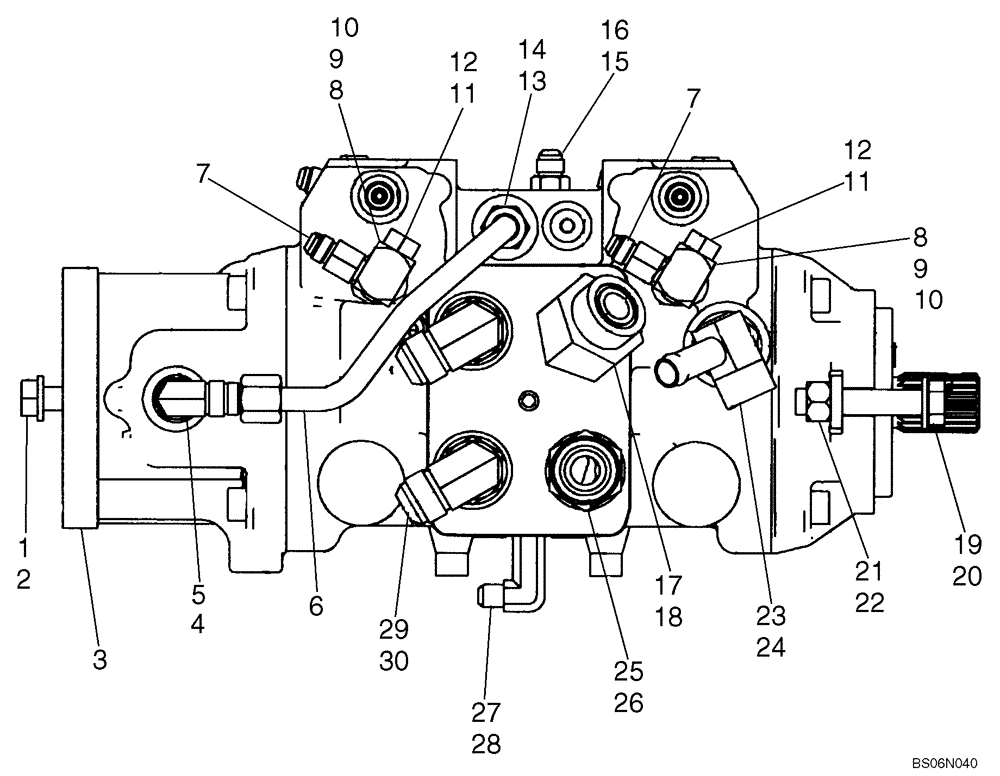

Схема запчастей Case 420 - (06-19) - HYDROSTATICS - PUMP FITTINGS (420 WITH PILOT CONTROL) (06) - POWER TRAIN
22
9
13
8
20
14
7
7
9
23
8
28
21
1
2
6
11
3
10
10
17
25
18
12
4
12
11
5
24
16
29
19
27
30
26
15

Артикул

Название

Примечание

Количество

1

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

3

87619378

PUMP,42.9 CC

Pump, A22-300BAR, 5.5MM ORF, 42.9CC, Pilot Control; See Fig 06-50

1шт.

3

87619378R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

3

87619378C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 5

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

Tube, Tandem Pump Supply

1шт.

7

87604075

ADAPTER

Connector With 1.0 mm Orifice

4шт.

8

87546979

ADAPTER

Incl. 9, 10

2шт.

9

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

11

76349

PLUG,9/16" - 18 ORB

Incl. 12

1-3шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1-3шт.

13

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 14

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 16

6шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

17

87302733

HYD CONNECTOR

Elbow 45 Adj. 1.0 ORFS-ORB 3/4; Incl. 18

1шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

87556906

BOLT,Hex, M14 x 70mm, Cl 10.9

2шт.

20

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

2шт.

21

87564740

NUT

Nut, M14 ZND; If Used

2шт.

21

87637186

NUT

Nut, M14 Class 10 ZND

2шт.

22

87564723

WASHER,15.3mm ID x 28.5mm OD x 6mm Thk

Washer

2шт.

23

87571937

ADAPTER

Incl. 24

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 26

1шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 30

4шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

Выбрано товаров: 33
