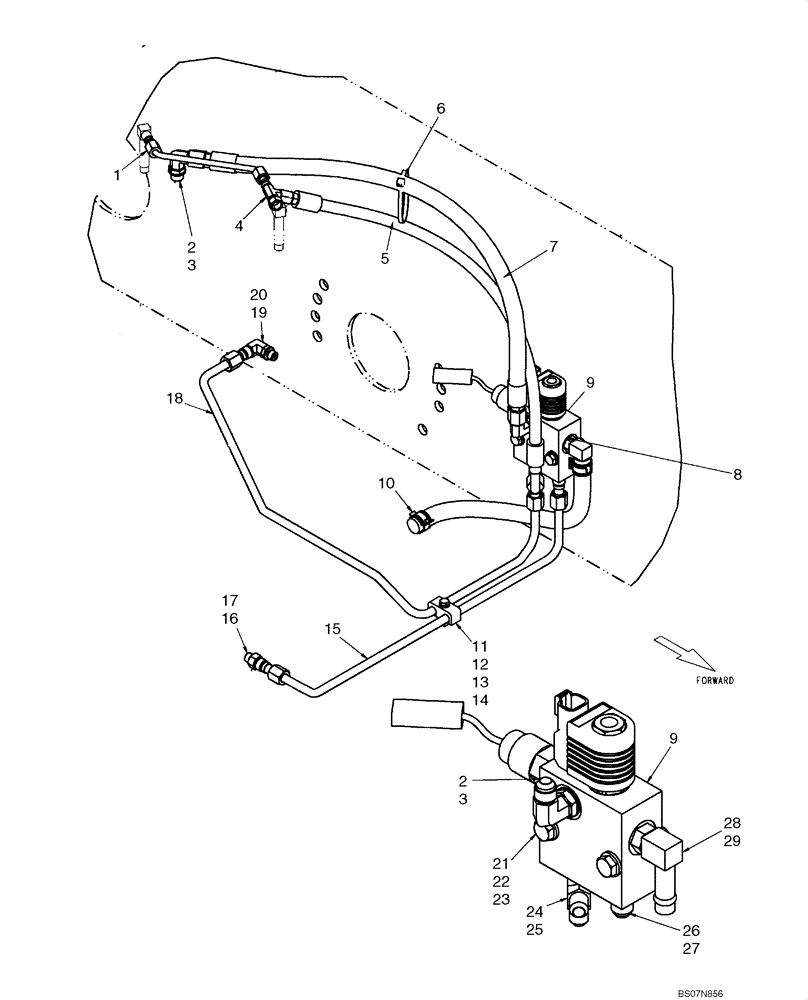

Запчасти Case 420 (07-01) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
87021277
TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare
1шт.
4
86513653
TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC
1шт.
5
87441276
HOSE ASSY.
1шт.
7
87459910
HOSE ASSY.
1шт.
8
87015463
HOSE,12.7mm ID x 402mm L
Brake Valve Drain
1шт.
9
87021047
BRAKE VALVE
Valve Assy; Incl 9A - 9C
1шт.
9a
87424182
BRAKE VALVE
Solenoid
1шт.
9b
87433496
COIL
1шт.
9c
87458061
PRESSURE SWITCH
Brake Valve; Incl. O-Ring Which Is Not Serviced Separately
1шт.
10
87443510
HOSE CLAMP,18.4mm Static ID x 15mm W
2шт.
11
604896
CLAMP,Dual, 3/8" Hose, 6mm Bolt
Double
1шт.
12
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
13
87404992
SQUARE NUT,M6 x 1.0, Cl 8
M6
1шт.
14
43117
SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8
1шт.
15
87459908
HYD TUBE,9.53 mm OD x 450.8, 100.5 mm L
1шт.
16
84384
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
Incl 17
1шт.
17
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
18
87459909
HYD TUBE,9.53 mm OD x 452.4, 69 mm L
1шт.
19
86512936
ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB
Incl 20
1шт.
22
229197A1
SQUARE NUT,M8 x 1.25, Cl 8
M8
2шт.
23
86624185
WASHER,8.8mm ID x 17.5mm OD x 2mm Thk
2шт.
24
86513020
TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC
Incl 25
1шт.
28
86705580
FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB
Incl 29
1шт.
Выбрано товаров: 32
