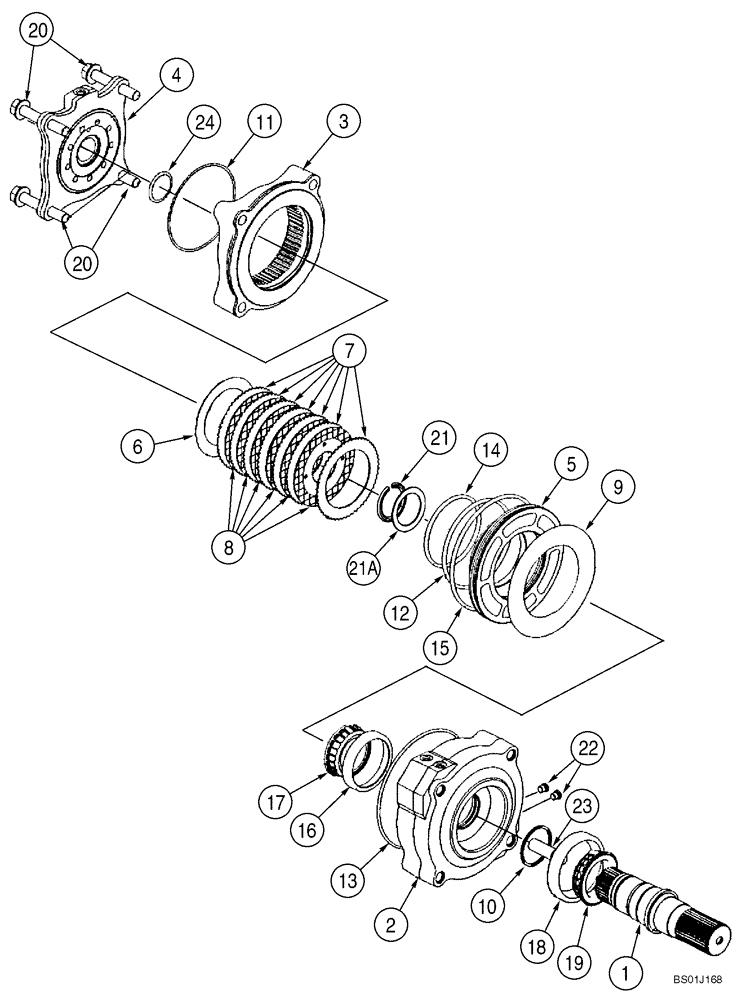

Запчасти Case 420 (06-17A) - MOTOR ASSY, BRAKE - CARLISLE (06) - POWER TRAIN

394539A2

MOTOR, HYDRAULIC

Eaton; Incl. Figure 06-17, 17A

2шт.

87359410

MOTOR, HYDRAULIC

Hydraulic Motor

1шт.

87359410R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

1шт.

87359410C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

442748A2

BRAKE ASSY.

Incl. 1 - 24; Carlisle; Before Date Code 276-06, 03OCT06; See Figure 06-17B For Motors Manufactured After That Date

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Sprocket

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Friction

1шт.

4

NSS

NOT SOLD SEPARAT

Flange, Motor

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

401268A1

KIT

Incl. 6, 7, 8

1шт.

6

NSS

NOT SOLD SEPARAT

Plate, Stator

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Stator

6шт.

8

NSS

NOT SOLD SEPARAT

Lining, Brake

6шт.

9

NSS

NOT SOLD SEPARAT

Disc, Brake, Spring

1шт.

401267A1

SEAL KIT

Seal; Incl. 10 - 15, 21, 24

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Quad Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

442749A1

BEARING ASSY

Bearing; Incl. 6, 16 - 19, 21, 21A

1шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

17

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

18

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

19

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

20

NSS

NOT SOLD SEPARAT

Bolt

1шт.

21

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

21a

NSS

NOT SOLD SEPARAT

Shim; Not Illustrated

1шт.

22

NSS

NOT SOLD SEPARAT

Plug; Port End

4шт.

23

NSS

NOT SOLD SEPARAT

Plug; Shaft

1шт.

24

NSS

NOT SOLD SEPARAT

Seal; 5/8 x 2; Shaft End

4шт.
