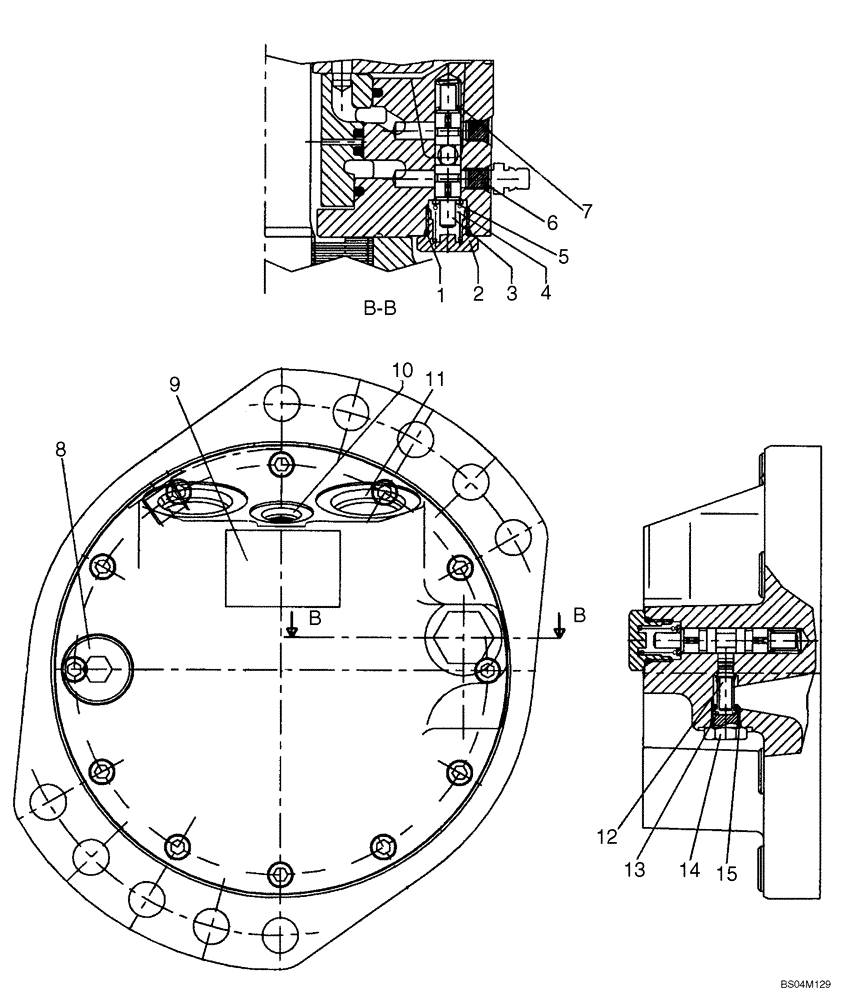

Запчасти Case 420 (06-16A) - MOTOR ASSY - REXROTH (06) - POWER TRAIN

87035450

MOTOR,400CC

One Speed; Incl. 06-16 - 06-16B

2шт.

87035450R

REMAN-HYD MOTOR,470CC

420 SSL BSN N7M466710

2шт.

87035450C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

1

NSS

NOT SOLD SEPARAT

O-Ring, 13.6 x 2.4; Included In 87039367, Seal Kit, See Figure 06-06B

1шт.

2

87045009

PLUG,G3/8" - 19

Flushing, 3/8

1шт.

3

87042928

SPOOL

Flushing

1шт.

4

87042935

SPRING

Flushing Side B

1шт.

5

87042929

WASHER

1.5 Thick

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

87042934

SPRING

Flushing Side A

1шт.

8

214389

PLUG,3/4" - 16 ORB

1шт.

9

NSS

NOT SOLD SEPARAT

Label

1шт.

10

NSS

NOT SOLD SEPARAT

Shipping Plug

2шт.

11

NSS

NOT SOLD SEPARAT

Shipping Plug

2шт.

12

87045005

POPPET

1.5 Orifice

1шт.

13

87042932

SPRING

Flushing

1шт.

14

87042933

POPPET,Plug, 7/16" SAE

7/16

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, 8.92 x 1.83; Included In 87039367, Seal Kit, See Figure 06-06B

1шт.
