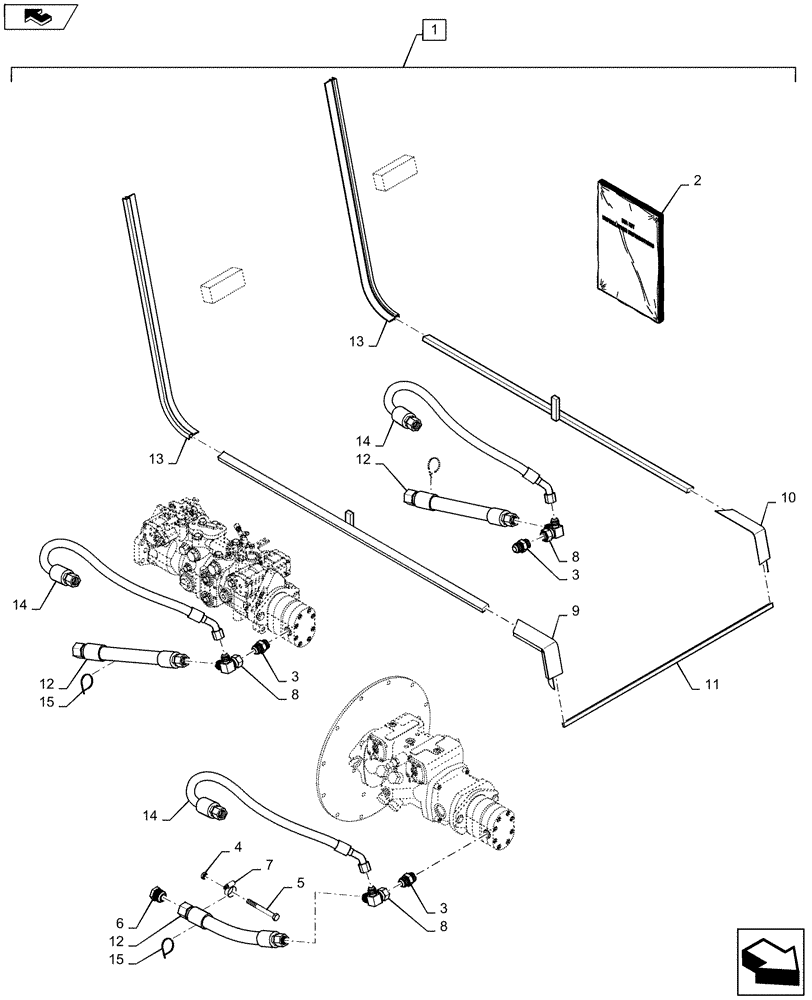

Запчасти Case 420 (88.088.05) - DIA KIT, NOISE REDUCTION, NA (88) - ACCESSORIES

1

87489709

SERVICE KIT

NA Noise Reduction, Incl 2 - 15

1шт.

2

87489710

INSTRUCTION

Install, Noise Reduction

1шт.

3

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

4

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

5

9501756

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

1шт.

6

9790527

PLUG,1-5/16" - 12 JIC

1шт.

7

87039085

HOSE CLAMP,32mm - 54mm

1шт.

8

87441649

ADAPTER

Swivel Tee Side Outlet Reducer

1шт.

9

87473791

RUBBER SEAL,241.5mm L

Pivot RH

1шт.

10

87473792

RUBBER SEAL,241.5mm L

Pivot LH

1шт.

11

87636733

SERVICE KIT

Installation, Cab Noise Reduction

1шт.

12

87717826

HOSE,25.4mm ID x 475mm L

Resonator

1шт.

13

87719792

SEALING STRIP,39.3mm W x 783.3mm L x 2.2mm Thk

Rear Cab

2шт.

14

87720912

HOSE,15.88mm ID x 950mm L

Valve Supply

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
