Запчасти Case 420 (09-25) - CAB DOOR - WITHOUT SPRING ASSIST, IF USED (09) - CHASSIS

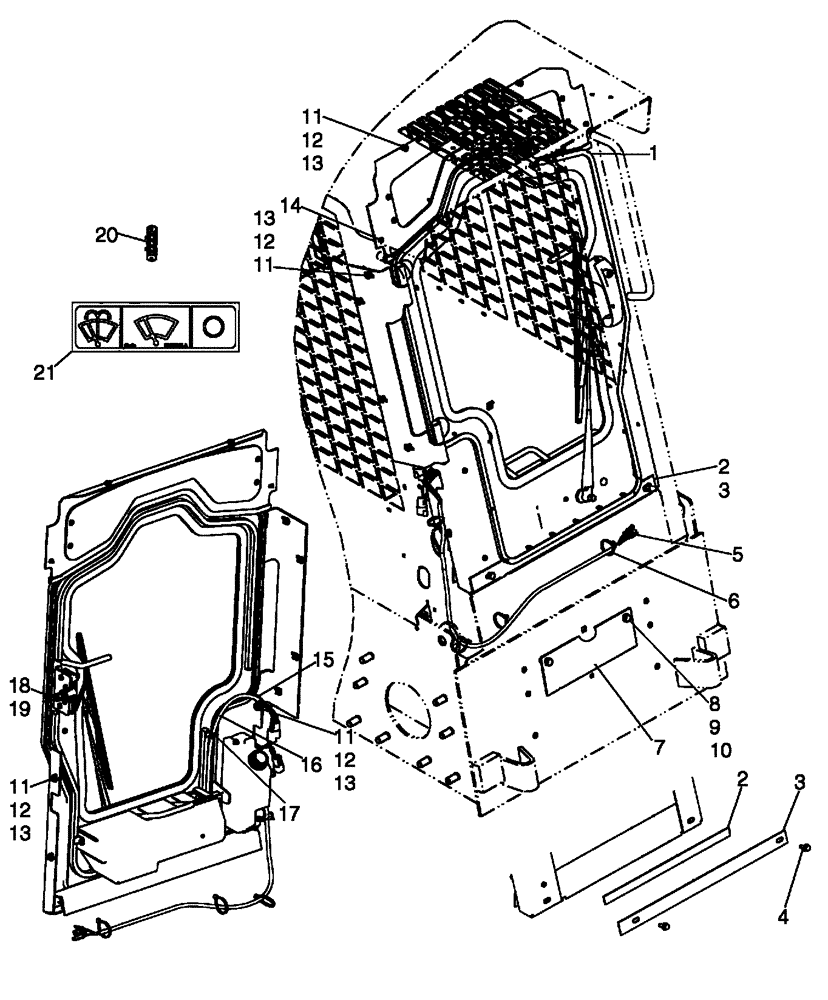

Схема запчастей Case 420 - (09-25) - CAB DOOR - WITHOUT SPRING ASSIST, IF USED (09) - CHASSIS
11
17
13
19
4
6
16
18
8
7
1
12
10
12
3
20
11
2
9
15
2
3
13
11
12
14
5
21
13
13
12
11

Артикул

Название

Примечание

Количество

1

87458889

DOOR ASSY.

Component Parts Not Available At Time Of Printing; No Longer Available, Order 87462481, See Figure 09-25A

1шт.

2

87461250

SEAL

Riser Panel

1шт.

3

REF

INSTRUCTION

Riser Strip From Door Assy, Ref 1; Part Number Not Available At Time Of Printing

1шт.

4

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

5

87460753

WIRE HARNESS

Door Jumper

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

7

87461248

PLATE

1шт.

8

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

9

86512554

NUT,M10 x 1.5, Cl 10

2шт.

10

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

11

87030561

NUT,M6 x 1, Cl 8

12шт.

12

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

24шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

12шт.

14

86639137

SELF-TAP SCREW,Hex Hd, M6.3 x 13

2шт.

15

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

9.5 mm J 3/8 in Bolt

1шт.

16

87460752

WIRE HARNESS

Door

1шт.

17

347610A1

ANCHOR

2шт.

18

280980

NUT,7/16"-14, GC

1шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

M12 x 24.5 x 3, HT

1шт.

20

A149804

FUSE

30 Amp, Light Green

1шт.

21

87461244

DECAL

Windshield Wiper Switch

1шт.

Выбрано товаров: 21
