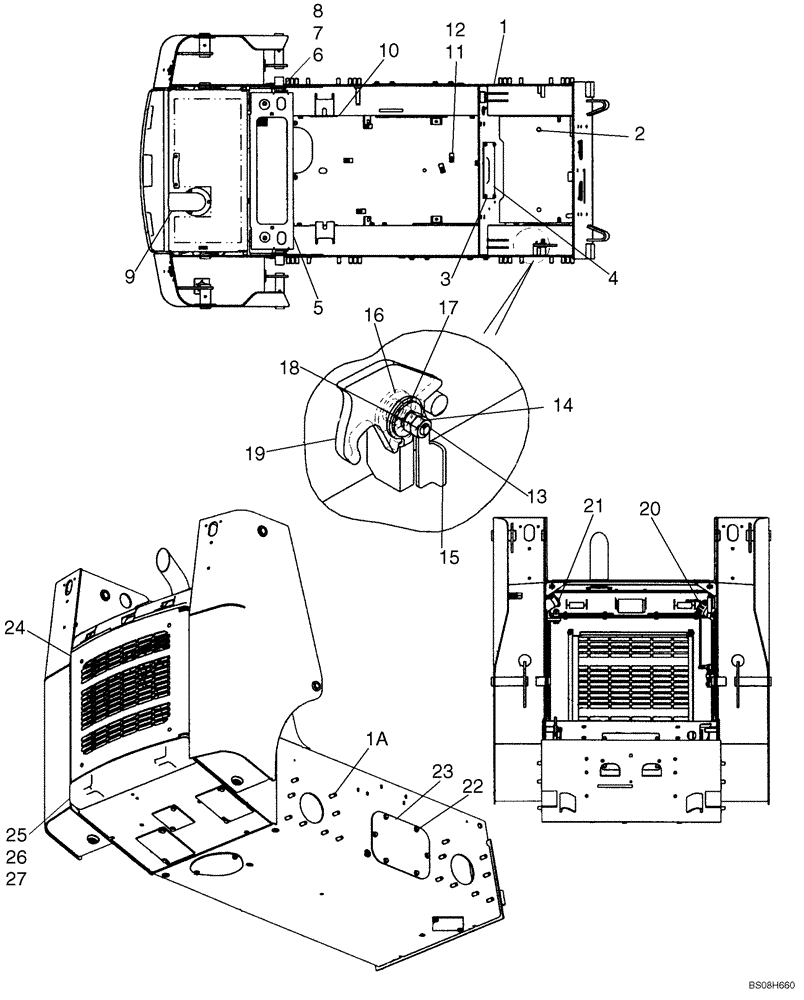

Запчасти Case 420 (09-10) - CHASSIS (420) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
87452372
SERVICE KIT
Chassis Kit; Units With Eaton Drive Motors; Order From Wholegoods; Incl. Chassis Frame 87459792, Fuel/Hydraulic Fill Caps, Fuel Sender/Gasket; Ref 1, 10, 20, 21 on Figure 09-10; Ref 1, 9, 11 on Figure 09-11; Ref 4 - 6 on Figure 04-06
1шт.
87478074
SERVICE KIT
Chassis Kit; Units With Rexroth Drive Motors; Order From Wholegoods; Incl Chassis Frame 87458450, Fuel/Hydraulic Fill Caps, Fuel Sender/Gasket
1шт.
1
87459792
Chassis Frame; Order From Wholegoods
1шт.
1a
277450A1
STUD,M16 x 2 x 40mm, Cl 10.9
M16x40; Studs For Axle Mounting
32шт.
2
87454385
PLATE ASSY.
Floor
1шт.
3
86545825
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"
4шт.
4
87430679
PLATE
1шт.
5
87458638
PANEL
Heat Shield Extension; Perforated Top; If Used
1шт.
5
87362234
PANEL
Heat Shield Extension; Not Illustrated; Non-Perforated Top; European, If Used
1шт.
7
86624184
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
9
NSS
NOT SOLD SEPARAT
Hood, Engine; See Figure 09-16
1шт.
10
86991034
PLUG
Axle Access
4шт.
11
NSS
NOT SOLD SEPARAT
Screw
1шт.
12
NSS
NOT SOLD SEPARAT
Spacer
1шт.
13
294943A1
STUD
1шт.
15
294911A2
HOOK
Plate
1шт.
16
87381
WASHER,0.81" ID x 1.47" OD x 0.13" Thk
1шт.
17
294967A1
WASHER
1шт.
18
278332A1
SPRING WASHER
Spring
1шт.
19
390516A3
LATCH
Plate; ROPS Latch
1шт.
20
257448A1
CAP
Oil Filler; Incl. 292259A1
1шт.
292259A1
SEAL
Filler Cap
1шт.
21
H436887
CAP
Fuel; Non-Locking
1шт.
21
108925A1
FILLER CAP
Fuel; Locking; If Used
1шт.
23
87411208
COVER PLATE
2шт.
24
REF
INSTRUCTION
See Figure 09-17
1шт.
25
86536985
NUT,M20 x 2.5, Cl 10
2шт.
27
87445534
BOLT
M20 x 70
2шт.
27
412641
BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9
Replaces 87445534
2шт.
