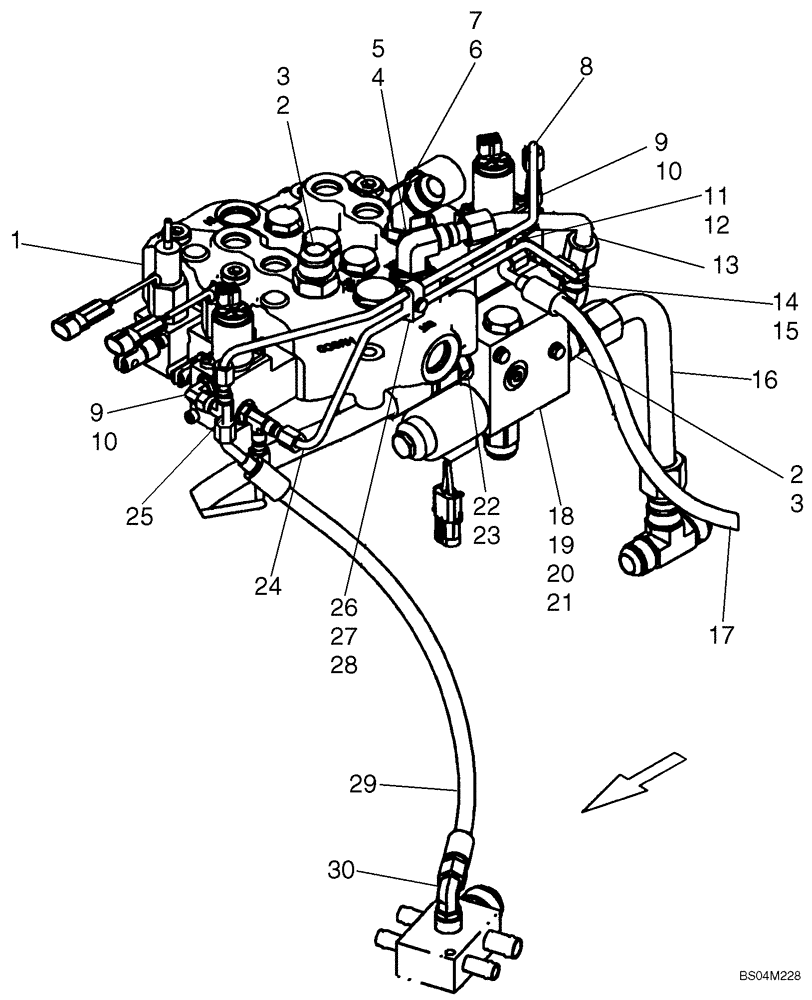

1
87446766
CONTROL VALVE
See Figure 08-10
1шт.
1
87635385R
REMAN-HYD VALVE
420 SKID STEER, NA BSN N7M466710 (2/05-), Reman for New PN 87446766
1шт.
1
87635385C
CORE-VALVE HYD
Return Number
1шт.
1
87527174
VALVE
See Figure 08-10; If Used
1шт.
1
87635385R
REMAN-HYD VALVE
420 SKID STEER, NA BSN N7M466710 (2/05-), Reman for New PN 87527174
1шт.
1
87635385C
CORE-VALVE HYD
Return Number
1шт.
1
87583286
VALVE
EH Auxiliary; See Figure 08-10A; If Used
1шт.
2
322896
HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC
Incl 3
2шт.
3
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
9617891
ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB
Incl. 5
1шт.
5
167269
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
6
330344
45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB
Incl. 7
1шт.
7
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
8
87021276
HYD TUBE
1шт.
9
216773
90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring
Incl. 10
1шт.
10
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
11
86513019
TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC
Incl. 12
2шт.
12
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
2шт.
13
87423209
HYD TUBE,12.7 mm OD x 146.2, 113.4 mm L
1шт.
14
128830
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB
Incl. 15
2шт.
15
128825
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
16
87445144
HYD TUBE,19.05 mm OD x 200.7, 93.9 mm L
Valve Out To Filter
1шт.
17
87022702
HOSE
675 mm (26.57 in)
1шт.
18
87012669
VALVE
Combination; See Figure 08-20
1шт.
19
338413
BOLT,Hex, M6 x 60mm, Cl 8.8
2шт.
20
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
21
87404992
SQUARE NUT,M6 x 1.0, Cl 8
M6
2шт.
22
128818
UNION,3/4" - 16 ORB x 3/4" - 16 JIC
Incl. 23
2шт.
23
128825
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
24
87438840
HYD TUBE,6.35 mm OD
Pilot Pressure
1шт.
25
218-841
TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br
1шт.
26
608089
CLAMP
1шт.
27
120100
BOLT,M6 x 20mm, Cl 8.8
1шт.
28
832-41406
NUT,M6 x 1, Cl 8
1шт.
29
87441858
HOSE
Case Drain
1шт.
30
76344
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 31
1шт.
31
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
