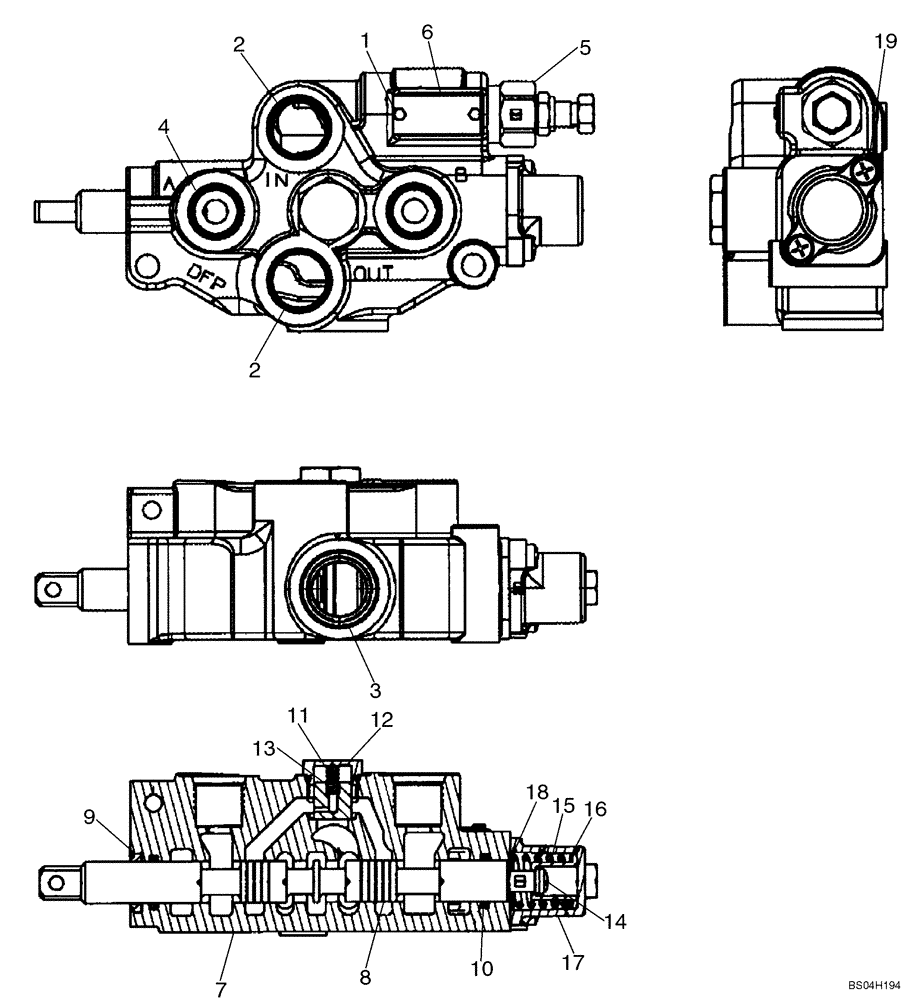

Запчасти Case 420 (08-16) - SECONDARY FRONT AUXILIARY - VALVE ASSY (08) - HYDRAULICS

87017348

VALVE

Secondary Auxiliary Valve; Incl. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

Screw, Drive

2шт.

2

NSS

NOT SOLD SEPARAT

Shipping Plug

2шт.

3

NSS

NOT SOLD SEPARAT

Shipping Plug

1шт.

4

NSS

NOT SOLD SEPARAT

Shipping Plug

2шт.

5

NSS

NOT SOLD SEPARAT

Relief Valve Assy

1шт.

6

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

7

NSS

NOT SOLD SEPARAT

Body

1шт.

8

NSS

NOT SOLD SEPARAT

Spool

1шт.

87455258

SEAL KIT

Seal Kit; Incl. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

87455257

KIT

Load Check Kit; Incl. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Load Check Plug Assy

1шт.

13

NSS

NOT SOLD SEPARAT

Poppet, Load Check

1шт.

87455274

SPRING KIT

Spring Center Kit; Incl. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

Screw With Lock Washer

1шт.

15

NSS

NOT SOLD SEPARAT

Spring

1шт.

16

NSS

NOT SOLD SEPARAT

Spacer

1шт.

17

NSS

NOT SOLD SEPARAT

End Cap

1шт.

18

NSS

NOT SOLD SEPARAT

Washer

1шт.

19

NSS

NOT SOLD SEPARAT

Screw With Lock Washer

1шт.
