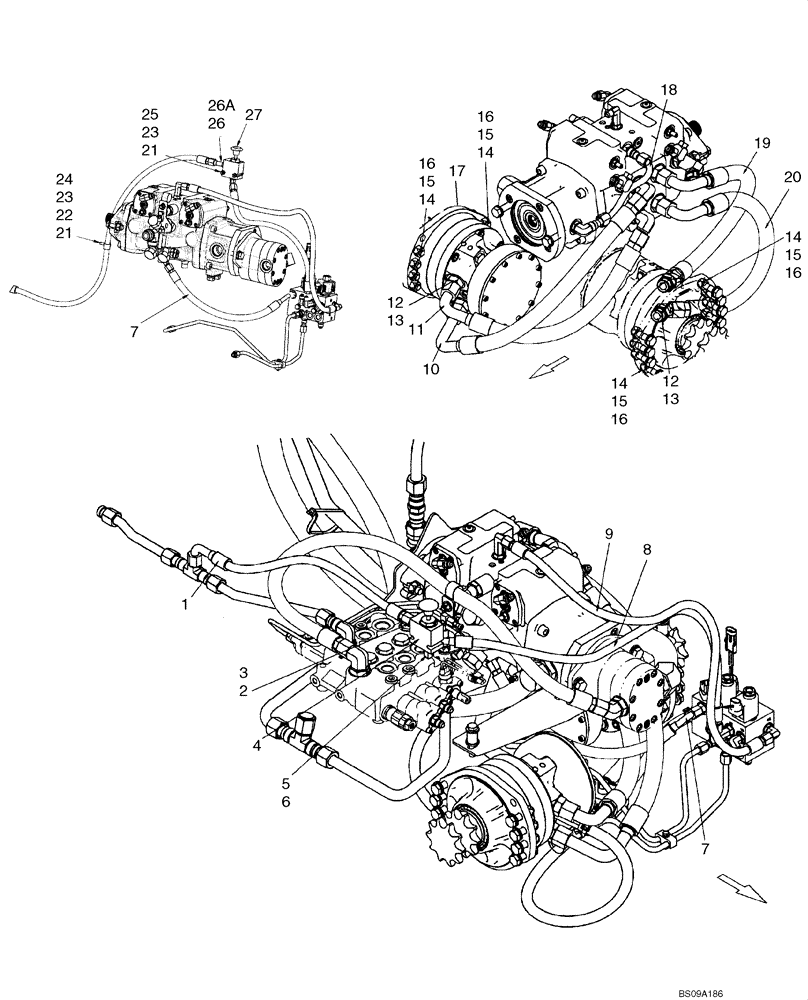

Запчасти Case 410 (06-15) - HYDROSTATICS - PUMP TO DRIVE MOTORS (PILOT CONTROL) (06) - POWER TRAIN

1

87745167

HOSE,9.65 mm ID x 970 mm

Dump Valve Supply, Replaces 87685978

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 3

1шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

87604076

VALVE, EXHAUST, OVER

Boom Over Ride; Replaces 87546973

1шт.

5

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 6

1шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

87685980

HOSE

Hose, 465mm (18 5/16 in.)

1шт.

8

87707137

HOSE,9.53mm ID x 620mm L

Hose Dump Valve Drain, 620mm (24 7/16 in.); Replaces 87563992 Hose, 820mm (32 5/16 in.)

1шт.

9

87685979

HOSE

Hose, 885mm (34 13/16 in.)

1шт.

10

87685975

HOSE

Hose, Motor To Pump Loop, 594mm (23 3/8 in.); If Used

1шт.

10

87735269

HOSE

Hose, Motor To Pump Loop, 695mm (27.36 in.)

1шт.

11

87685974

HOSE

Hose, Motor To Pump Loop, 530mm (20 5/8 in.); If Used

1шт.

11

87735270

HOSE

Hose, Motor To Pump Loop, 585mm (23.03 in.)

1шт.

12

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 13; If Used

4шт.

12

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

3/4" Tube ORFS - 3/4" Tube ORB; If Used

4шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

If Used

4шт.

14

412672

NUT,Hex, M12 x 1.75, Cl 10

18шт.

15

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

20шт.

16

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

16шт.

17

87035450

MOTOR,400CC

Drive Motor, Rexroth; See Fig 06-29 - 06-31

2шт.

17

87035450R

REMAN-HYD MOTOR,470CC

410 SSL ASN N7M480924

2шт.

17

87035450C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

18

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

Tube, Tandem Pump Supply

1шт.

19

87685971

HOSE

Hose, Motor To Pump Loop, 617mm (24 5/16 in.); If Used

1шт.

19

87735271

HOSE,19.05mm ID x 675mm L

Hose, Motor To Pump Loop, 675mm (26.57 in.)

1шт.

20

87685973

HOSE,19.05mm ID x 595mm L, SAE 100R13

Hose, Motor To Pump Loop, 595mm (23 9/16 in.); If Used

1шт.

20

87735272

HOSE

Hose, Motor To Pump Loop, 705mm (27.76 in.)

1шт.

21

87030561

NUT,M6 x 1, Cl 8

3шт.

22

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

23

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

24

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

25

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

26

86513065

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

Incl 26A

1шт.

26a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

87568435

DECAL

Boom Override

1шт.
