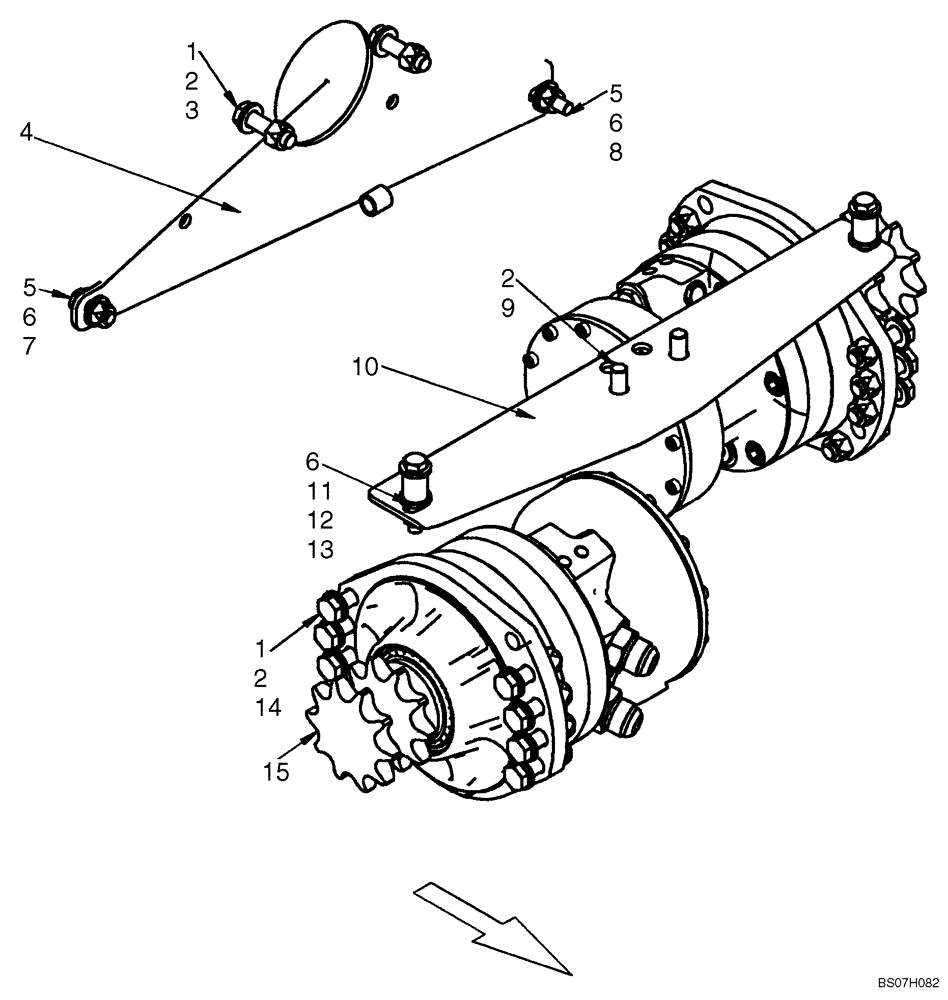

Запчасти Case 410 (06-11) - PUMP AND MOTOR MOUNTING (06) - POWER TRAIN

1

412672

NUT,Hex, M12 x 1.75, Cl 10

18шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

22шт.

3

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

4

87653860

PLATE

Plate, Rear Pump Mount; If Used

1шт.

4

87720460

PLATE

Plate, Rear Pump Mount; If Used

1шт.

5

86512554

NUT,M10 x 1.5, Cl 10

2шт.

6

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

11шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

8

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

9

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

10

87653862

ANGLE

Front Pump Mount

1шт.

11

256690A1

SPACER

2шт.

12

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

14

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

16шт.

15

87035450

MOTOR,400CC

See Fig. 06-29 - 06-31

2шт.

15

87035450R

REMAN-HYD MOTOR,470CC

410 SSL ASN N7M480924

2шт.

15

87035450C

CORE-MOTOR HYDRAULIC

Return Number

2шт.
