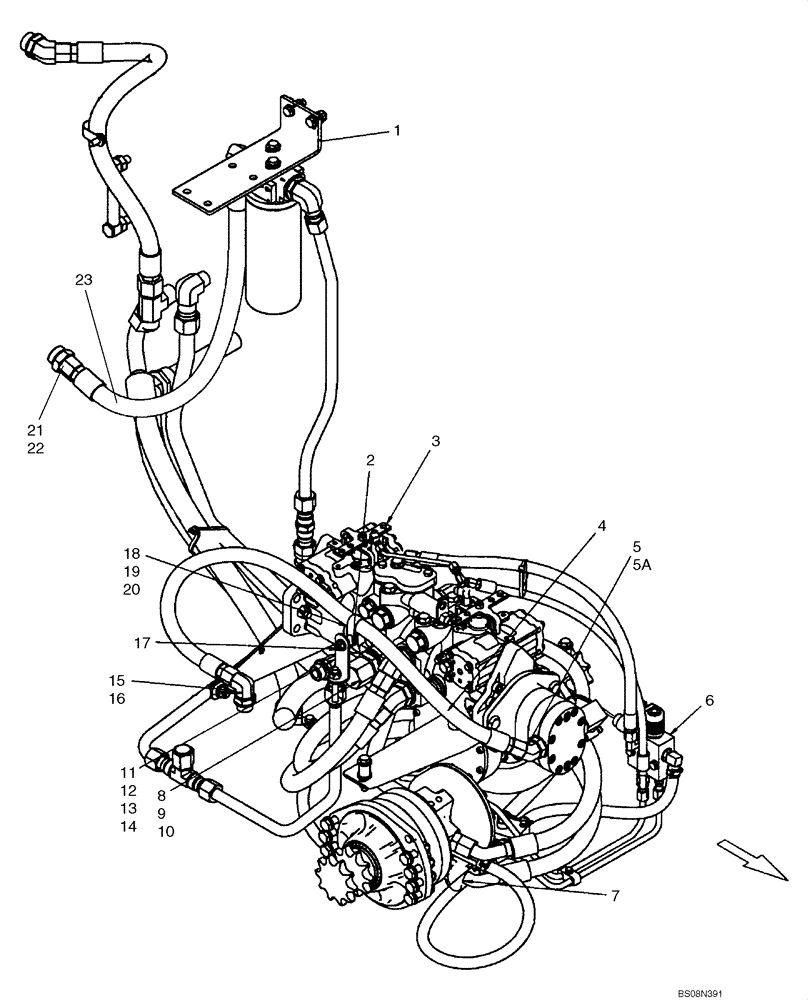

Запчасти Case 410 (06-10) - PUMP, TANDEM - MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

Filter And Mounting; See Fig. 06-09

1шт.

2

P24576

SPACER,3/8" Pipe x 11/16"

1шт.

3

87048837

PUMP,37.7 CC

M46 Tandem Pump With Gear Pump; See Fig. 06-24 - 06-28 For Tandem Pump; See Fig. 06-17 For Gear Pump

1шт.

4

87021838

HOSE ASSY.

1065mm (41 15/16 in.)

1шт.

5

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 5A

1шт.

5a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

REF

INSTRUCTION

Hydraulic Brake System; See Fig. 07-01

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

8

87418259

FITTING

Incl. 9

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

87301358

HOSE CLAMP,1.00/1.875 HD Worm

1шт.

11

86512554

NUT,M10 x 1.5, Cl 10

1шт.

12

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

13

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

14

87458997

BRACKET

1шт.

15

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 16

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

9628098

NUT,M8 x 1.25, Cl 10

1шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

19

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

20

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 22

1шт.

22

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

23

87720240

HOSE,19.05mm ID x 760mm L

1шт.
