Запчасти Case 410 (06-07) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN

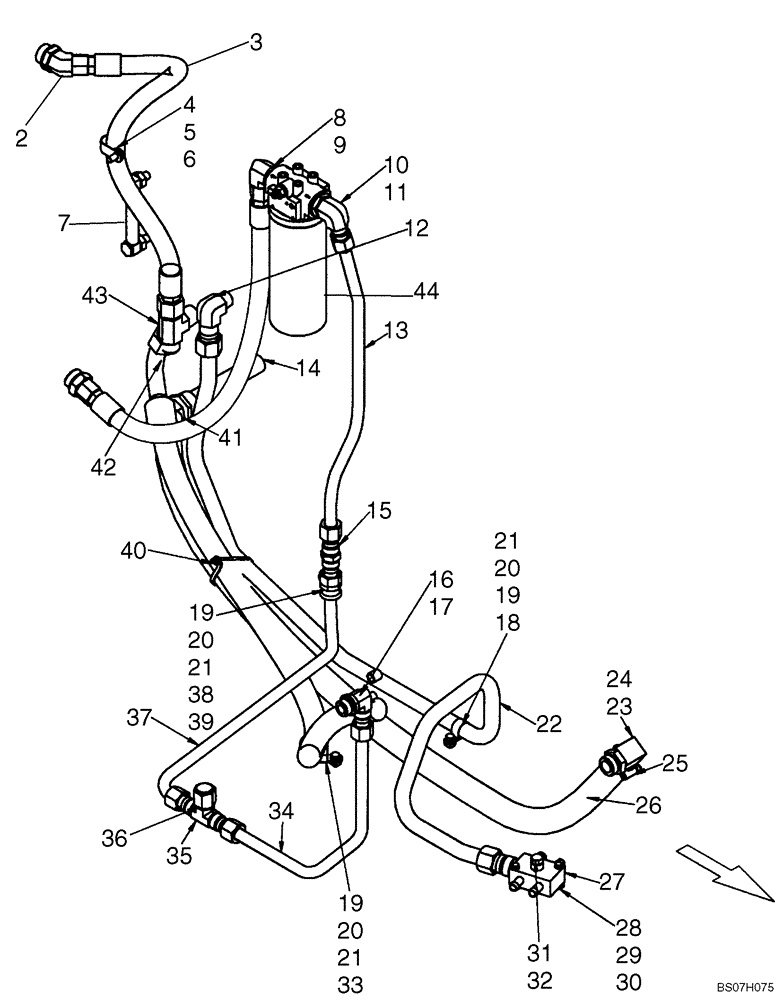

Схема запчастей Case 410 - (06-07) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (06) - POWER TRAIN
24
17
19
15
16
20
20
30
31
18
32
41
26
21
39
2
33
21
36
12
37
43
9
13
8
44
28
25
10
22
27
14
3
11
7
21
35
20
19
19
42
6
29
4
40
34
38
5
23

Артикул

Название

Примечание

Количество

1

87657980

ELBOW

Elbow, 45 Deg. 37 Fl 3/4 X 1.0 Tube; Incl. 2

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87653980

HOSE,19.05mm ID x 810mm L, SAE 100R4

Upper Cooler Hose, 810mm (31 7/8 in.)

1шт.

4

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

87374752

GAUGE

Liquid Level Gauge

1шт.

8

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 9

1шт.

9

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 11

1шт.

11

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

13

87445139

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

14

H151399

FILTER STRAINER

Filter, Suction Line

1шт.

15

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

16

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 17

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

21

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

22

87458880

HYD TUBE,25.4 mm OD

Case Drain

1шт.

23

86729372

FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl. 24

1шт.

24

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

87039085

HOSE CLAMP,32mm - 54mm

2шт.

26

87022438

HOSE,12.7mm ID x 1610mm L, SAE 100R4

1шт.

27

87437351

MANIFOLD

Oil Return Manifold

1шт.

28

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

29

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

30

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

76349

PLUG,9/16" - 18 ORB

Incl. 32

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

34

87445137

HYD TUBE,19.05 mm OD x 306.7, 187.6 mm L

Valve Out To Filter; If Used

1шт.

34

87446248

HYD TUBE,19.05 mm OD x 344.1, 215.2 mm L

Valve Out To Filter; If Used

1шт.

35

15694

TEE,1 1/16"-12 37 Degree

1шт.

36

219606

CAP,1-1/16" - 12 JIC

1шт.

37

87445138

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

38

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

1шт.

39

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

41

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1шт.

42

87441487

HOSE ASSY.

1325mm (52 3/16 in.)

1шт.

43

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

44

REF

INSTRUCTION

Filter Assembly; See Fig. 06-09

1шт.

Выбрано товаров: 45
