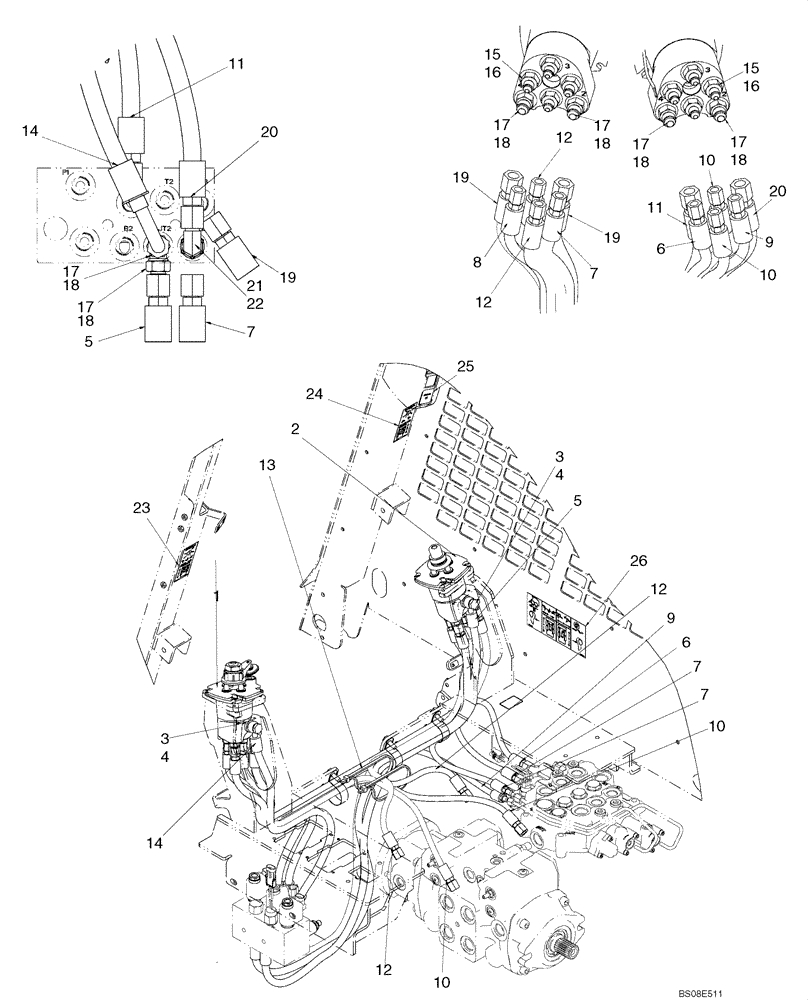

Запчасти Case 410 (06-01) - JOYSTICK CONTROL PLUMBING, H PATTERN (PILOT CONTROL) (06) - POWER TRAIN

87663447

SERVICE KIT

Kit, H Pattern Pilot Controls; Incl 1 - 22

1шт.

1

87357240

HYDRAULIC VALVE

Joystick Valve, LH - H Pattern; No Longer Used, Order 87740388; See Fig 06-03

1шт.

1

87740388

HYDRAULIC VALVE

Joystick Valve, LH - H Pattern; See Fig 06-03

1шт.

2

87357241

HYDRAULIC VALVE

Joystick Valve, RH - H Pattern; No Longer Used, Order 87740389; See Fig 06-04

1шт.

2

87740389

HYDRAULIC VALVE

Joystick Valve, RH - H Pattern; See Fig 06-04

1шт.

3

87622364

BOLT

Banjo Bolt 3/4 Hole

2шт.

4

933610R1

SEALING RING,M14 x 18 x 1.8

4шт.

5

87575289

HYDRAULIC HOSE,9.52 mm ID x 1260.00 mm

Joystick Supply

1шт.

6

87604061

HOSE,6.35mm ID x 1055mm L

Pilot, 1055mm (41 17/32 in.)

1шт.

7

87604069

HOSE,6.35mm ID x 490mm L

Pilot, 490mm (19 9/32 in.)

1шт.

8

87604062

HOSE,6.35mm ID x 590mm L

Pilot, 590mm (23 7/32 in.)

1шт.

9

87604063

HOSE,6.35mm ID x 930mm L

Pilot, 930mm (36 5/8 in.)

1шт.

10

87653907

HOSE

Pilot, 892mm (35 1/8 in.)

2шт.

11

87684180

HOSE,9.53mm ID x 620mm L

Hose, Joystick Drain, 620mm (24 13/32 in.)

1шт.

12

87653905

HOSE

Pilot, 762mm (30 in.)

2шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

14

87575290

HOSE,9.53mm ID x 776mm L

Joystick Supply, 776mm (30 9/16 in.)

1шт.

15

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 16

8шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 18

6шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

19

87684218

HOSE,9.53mm ID x 1300mm L

Hose, Joystick Supply/Drain, 1300mm (51 3/16 in.)

2шт.

20

87684217

HOSE,9.53mm ID x 690mm L

Hose, Joystick Supply, 690mm (27 5/32 in.)

1шт.

21

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 22

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

87715689

DECAL

Decal, H - Pattern, LH

1шт.

24

87715690

DECAL

Decal, H - Pattern, RH

1шт.

25

87746890

DECAL

Decal, H - Pattern

1шт.

26

87715687

DECAL

Decal, Control Identification, H - Pattern

1шт.
