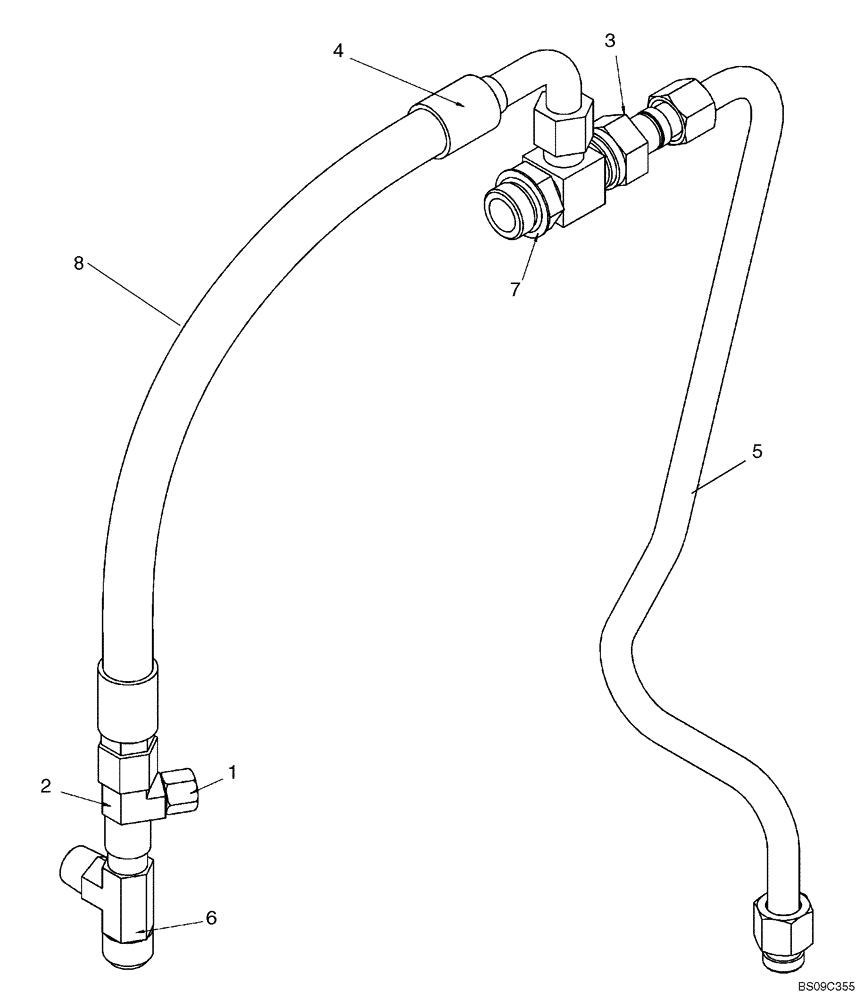

Запчасти Case 410 (02-23) - OIL COOLER BYPASS (02) - ENGINE

REF

INSTRUCTION

If Used, For Non-Bypass Option See Fig 06-13

1шт.

1

262159

CAP,3/4" - 16 Fem JIC

1шт.

2

86632548

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.

3

87032415

ADAPTER

Adapter Tube Reducer,37FL Male X Female 16-12

1шт.

4

87659246

HOSE,19.05mm ID x 630mm L, SAE 100R4

Oil Cooler Bypass

1шт.

5

87661904

HYD TUBE,19.05 mm OD

Valve To Filter

1шт.

6

87690479

TEE

Male 37 Fl, 1.0 x .75 x .75 PTF

1шт.

7

254524A1

TEE

Hydraulic- Special

1шт.

8

87661896

HOSE,19.05mm ID x 598mm L, SAE 100R4

CoolerTo Tank

1шт.
