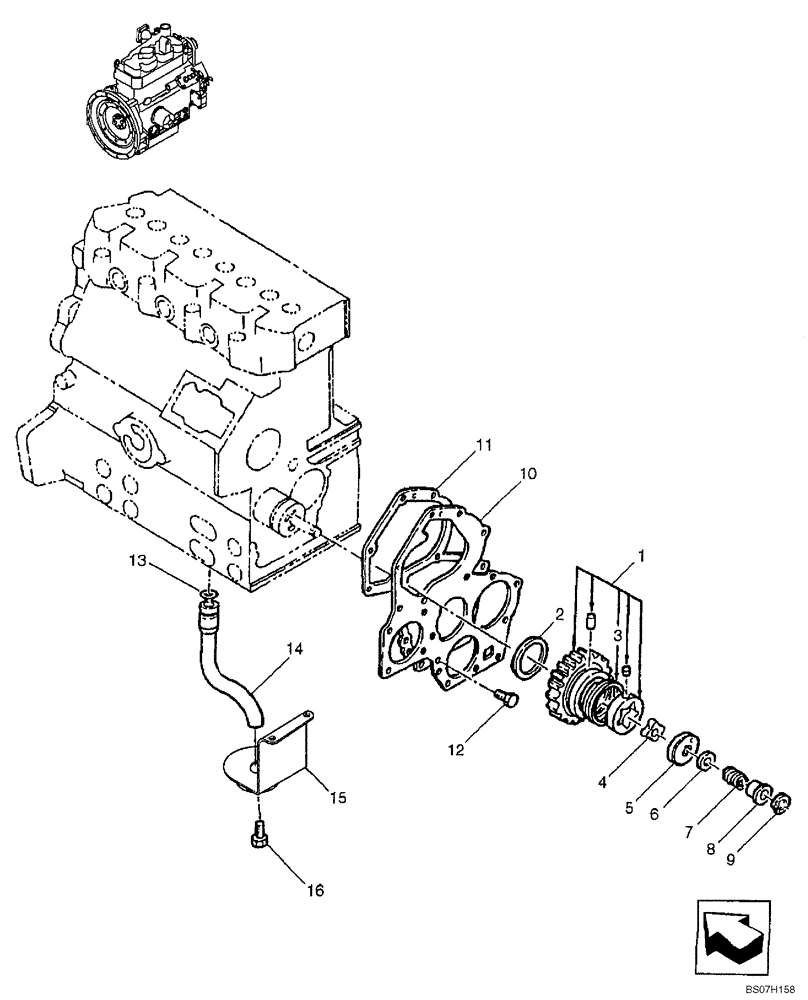

Запчасти Case 410 (02-20) - OIL PUMP & SUCTION FILTER (02) - ENGINE

1

SBA165026230

IDLER GEAR

Incl. Ref 3

1шт.

SBA165026230R

REMAN-ENG OIL PUMP

410 SERIES 3, 410 NA ASN N7M480924, 410 EU ASN N7M468736 (1/08-)

1шт.

SBA165026230C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

2

SBA199266270

WASHER, THRUST

1шт.

3

SBA198216821

SPRING

1шт.

4

SBA140166250

ROTOR

1шт.

5

SBA140116220

COVER

Oil Pump

1шт.

6

SBA199286150

SHIM,0.1mm Thk

1шт.

6

SBA199286160

SHIM,0.15mm Thk

1шт.

6

SBA199286170

SHIM,0.2mm Thk

1шт.

6

SBA199286180

SHIM,0.5mm Thk

1шт.

7

SBA198216720

SPRING

1шт.

8

SBA199236540

COLLAR

1шт.

9

SBA036800010

SNAP RING

1шт.

10

SBA165166650

PLATE

Plate, Front

1шт.

11

SBA165996540

GASKET

1шт.

12

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

13

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

14

SBA140986820

TUBE

1шт.

15

SBA140406490

FILTER SCREEN

1шт.

16

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.
