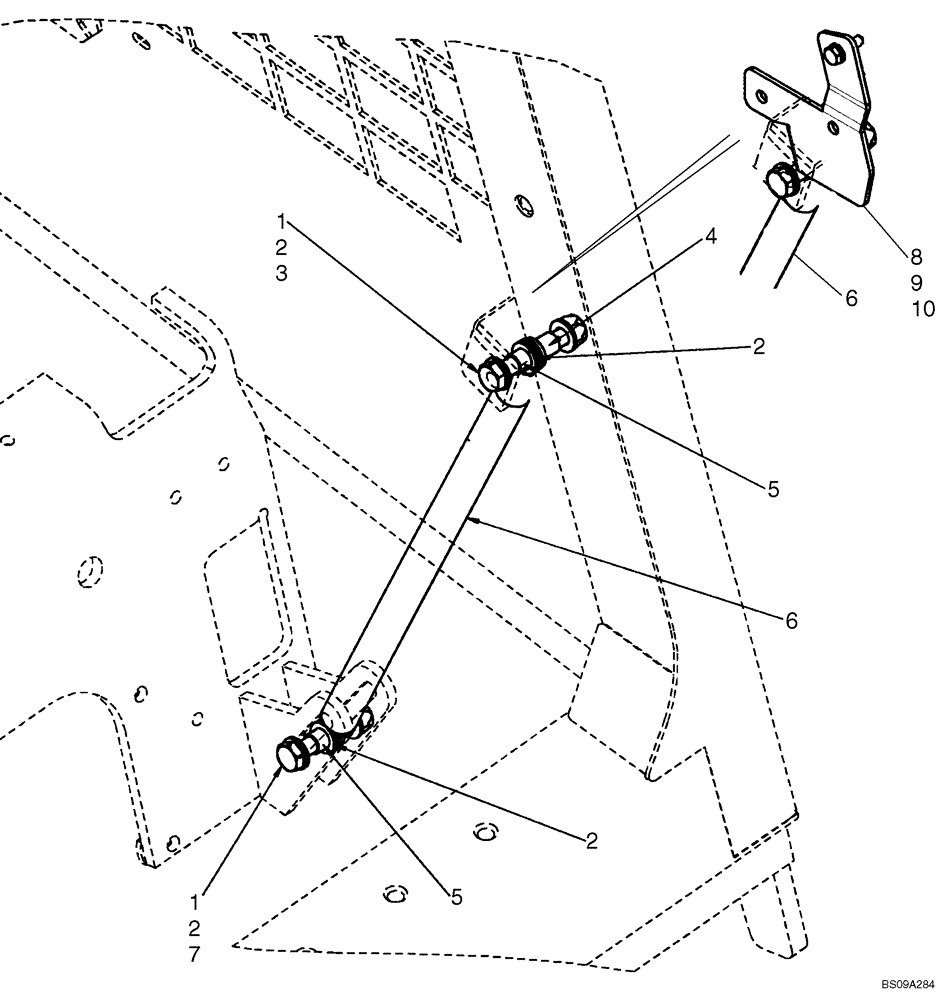

Запчасти Case 410 (09-26A) - CAB - ROPS PIVOT ASSIST (09) - CHASSIS

1

86512554

NUT,M10 x 1.5, Cl 10

2шт.

2

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

3

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

4

254698A1

SPACER

Pivot Spacer, 12.7mm OD X 14.5mm Length

1шт.

5

254697A1

SPACER

Pivot Spacer, 12.7mm OD X 9.0mm Length

3шт.

6

376669A1

GAS STRUT

Gas Spring, ROPS Pivot Assist

1шт.

7

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

8

87473817

BRACKET

Cup Holder

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
