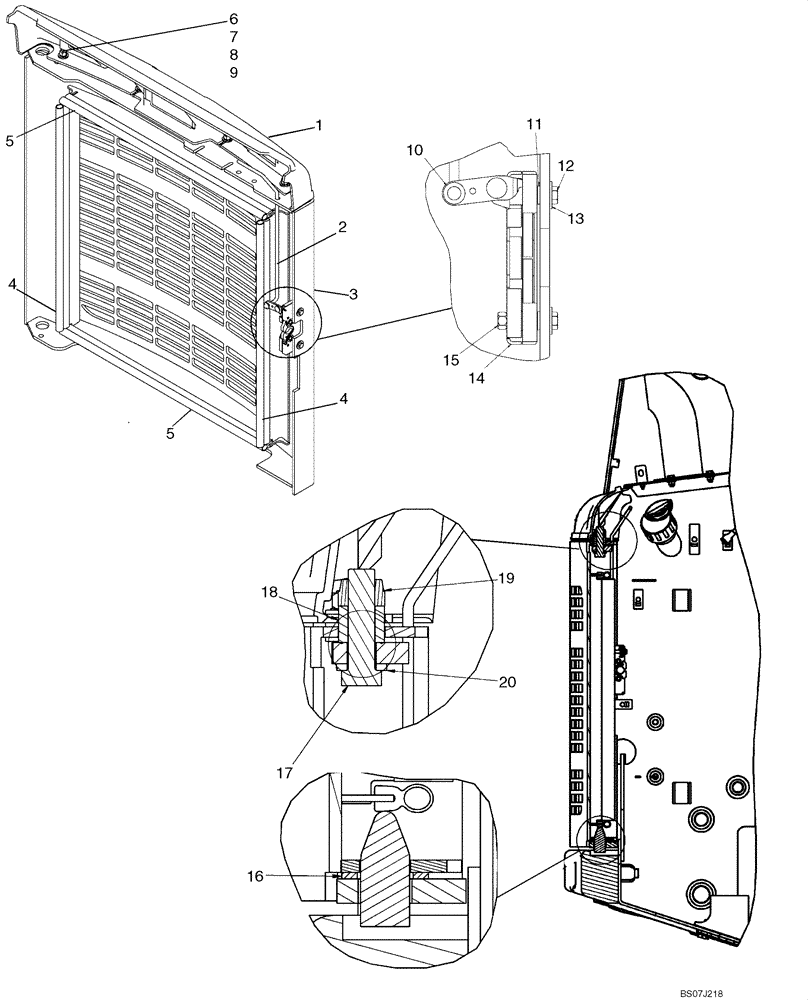

Запчасти Case 410 (09-23) - REAR DOOR (09) - CHASSIS

1

87461604

LIGHT FAIRING

Fairing, Rear Door Top

1шт.

2

87440124

ROD

Latch Pull Rod

1шт.

3

87660800

DOOR

Rear Door

1шт.

4

87648128

RUBBER SEAL,562mm L

Bulb Seal, 562mm (22 1/8 in.)

2шт.

5

87578980

RUBBER SEAL,590mm L

Bulb Seal, 590mm (23 7/32 in.)

2шт.

6

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

7

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

8

412250

NUT,M8 x 1.25, Cl 8

4шт.

9

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

12шт.

10

380751A1

NUT

1шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

13

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

14

87437076

LATCH

1шт.

15

87030561

NUT,M6 x 1, Cl 8

2шт.

16

248988A1

THRUST WASHER

Rear Door Thrust Washer

1шт.

17

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

1шт.

18

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

Door Hinge Bushing

1шт.

19

86512555

NUT,M16 x 2, Cl 10

1шт.

20

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.
