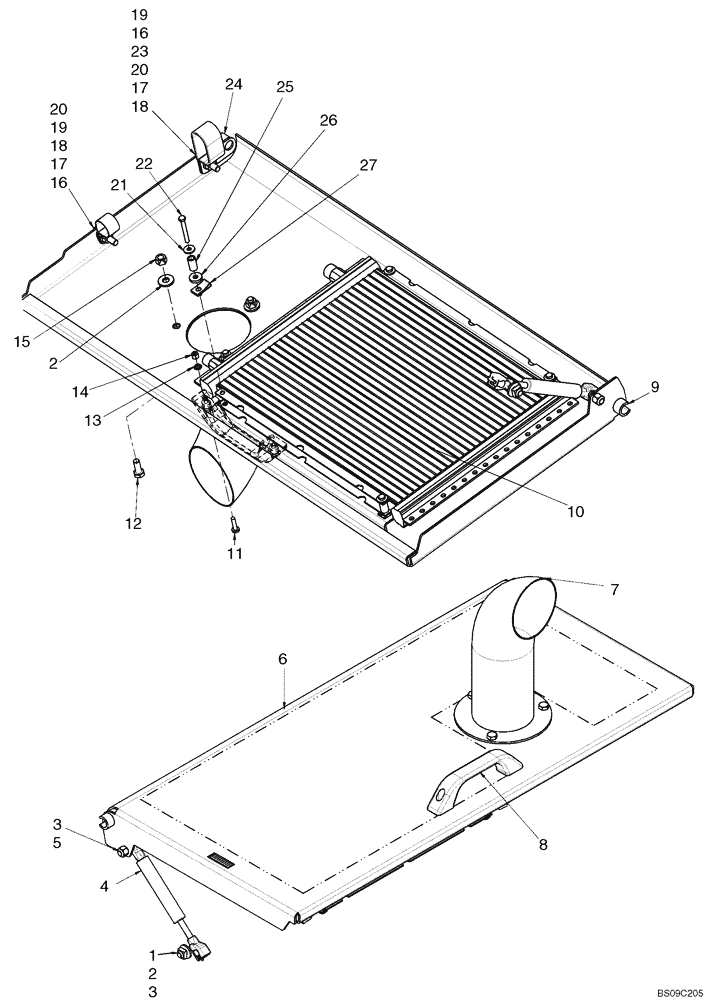

Запчасти Case 410 (09-22) - HOOD - AIR CONDITIONING (09) - CHASSIS

1

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

2

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

3

189609A1

BALL STUD,M8 x 1.25

2шт.

4

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

1шт.

5

412250

NUT,M8 x 1.25, Cl 8

1шт.

6

87666493

HOOD

Rear Hood, Air Conditioning

1шт.

7

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Exhaust Extension; 268 mm (10.55 in) Tall; If Used

1шт.

7

87725355

EXHAUST SYSTEM PIPE

Exhaust Extension; 243 mm (9.57 in) Tall; If Used

1шт.

8

406256A1

HANDLE

1шт.

9

87429698

SPACER

1шт.

10

87563692

CONDENSER

1шт.

11

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

13

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

14

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

15

9628098

NUT,M8 x 1.25, Cl 10

3шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

17

9706690

NUT,M8 x 1.25, Cl 8

2шт.

18

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

19

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1-2шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

21

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

4шт.

22

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

4шт.

23

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

If Used

1шт.

24

435396A1

SPACER

1шт.

25

87574372

SPACER,6.8mm ID x 10.3mm OD x 19mm L

4шт.

26

86592710

WASHER,6.4mm ID x 17mm OD x 3mm Thk

4шт.

27

87301324

NUT,Spring, M5 x 0.8

4шт.
